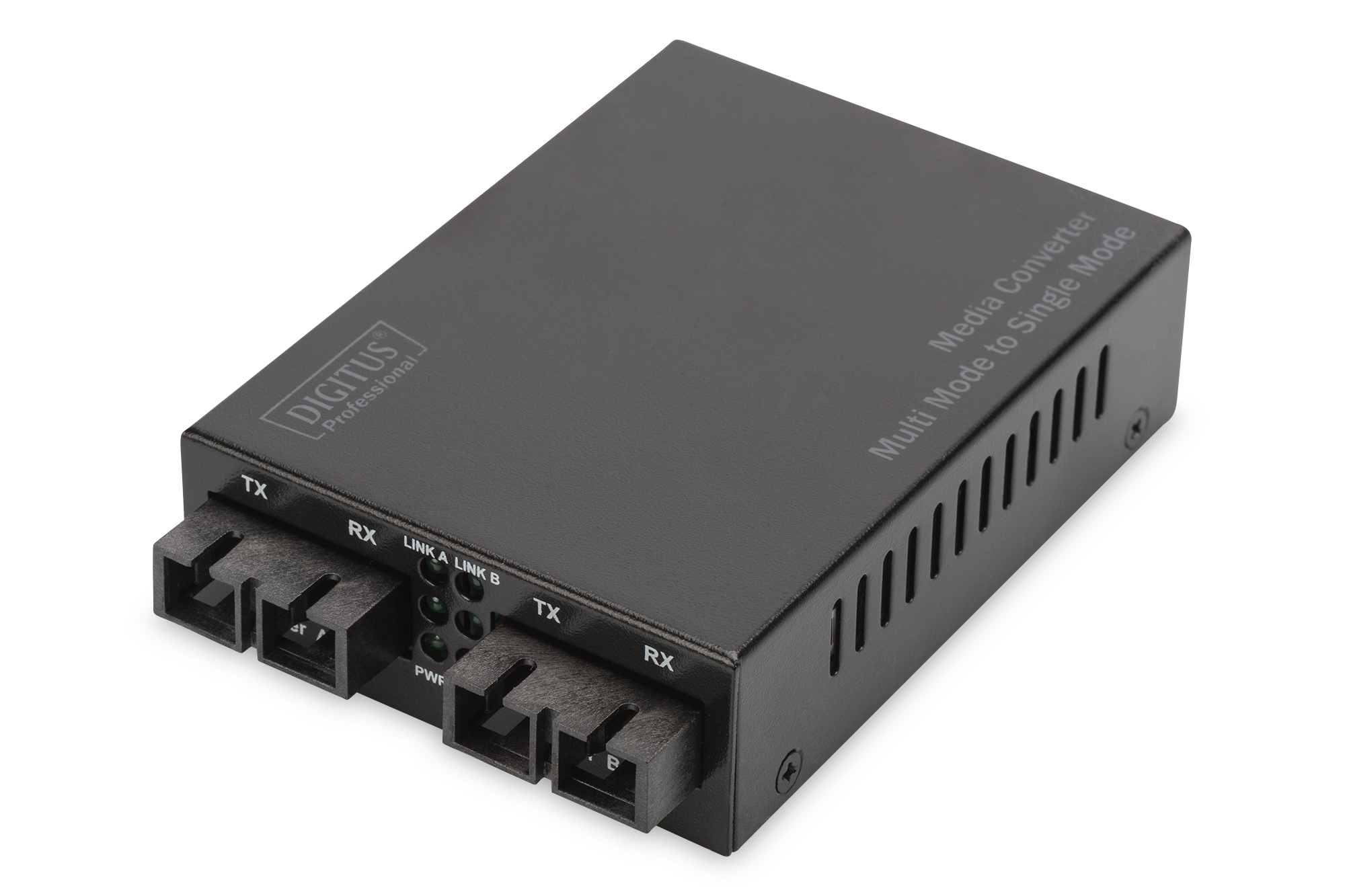

Digitus Fast Ethernet Multimode/Singlemode Media Converter SC/SC
Product no.: DN-82024
The perfect converter solution for optical data transmission- Easy conversion between multimode and singlemode fiber optic- Fast migration for long distances- Range of up to 20kmThe media converters from DIGITUS® are an optimal solution for the migration of fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.
| Network | |
| Maximum data transfer rate: | 100 Mbit/s |
| Converter input interface: | 100BASE-FX |
| Converter output interface: | 100Base-FX |
| Ethernet interface type: | Fast Ethernet |
| Ethernet LAN data rates: | 100 Mbit/s |
| Fiber ethernet cabling technology: | 100BASE-FX |
| Data transfer rate: | 100 Mbit/s |
| Ports & interfaces | |
| Fiber optic connector: | SC |
| Connectivity technology: | Wired |
| Fiber ports quantity: | 2 |
| DC-in jack: |  |
| Performance | |
| Maximum transfer distance: | 20000 m |
| Wavelength: | 1310 nm |
| Fiber mode structure: | Multi-mode, Single-mode |
| Fiber cable diameters supported (core/cladding): | 8.3/125,8.7/125,9/125,10/125,50/125,62.5/125,100/140 µm |
| Design | |
| Internal: |  |

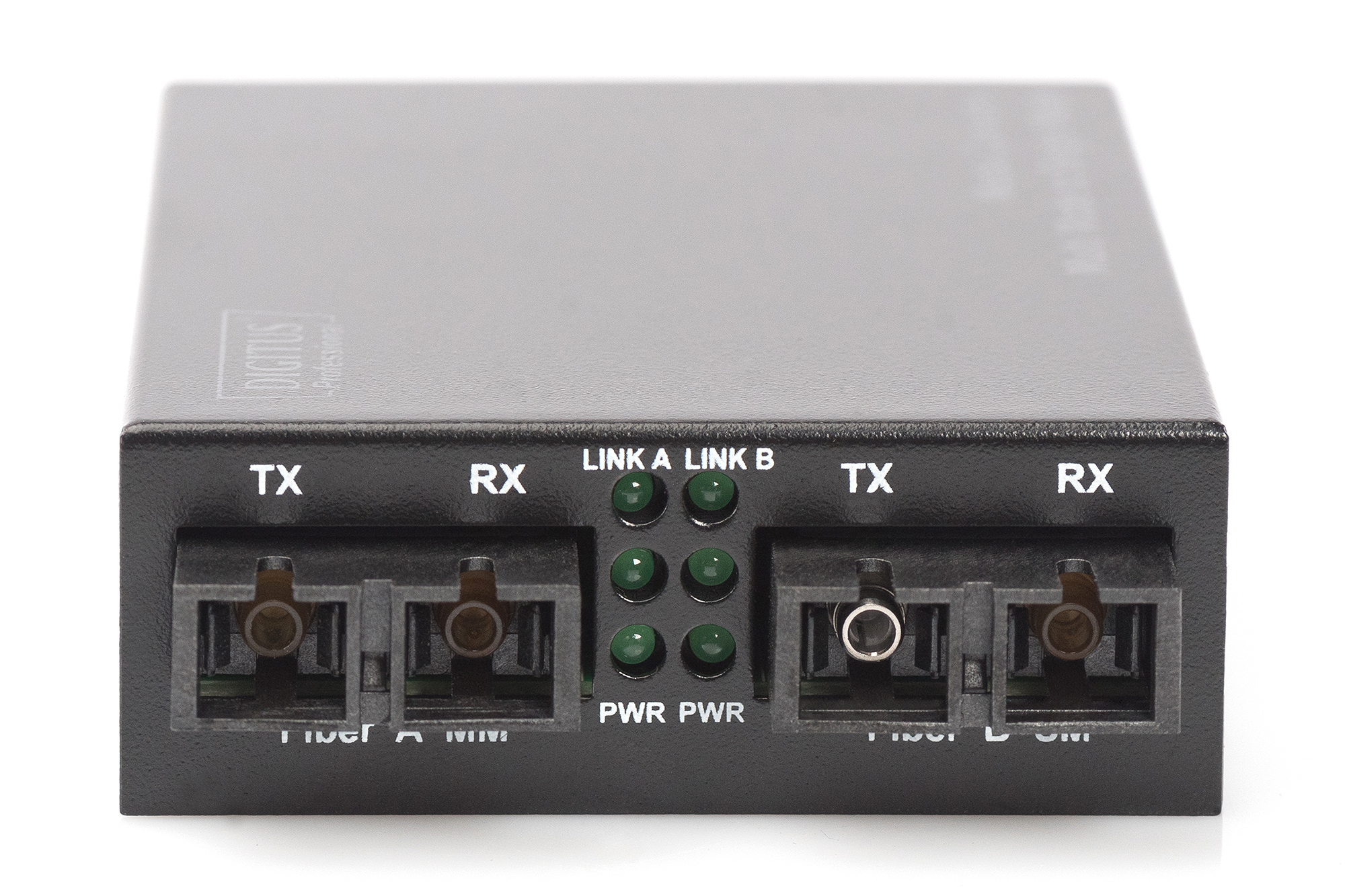

| LED indicators: | Activity, Link, Power, Status |
| Product colour: | Black |
| Country of origin: | China |
| Power | |
| Input voltage: | 5 V |
| Input current: | 1 A |
| Power consumption (typical): | 3.5 W |
| Power over Ethernet (PoE): | |
| External power adapter: | |
| Weight & dimensions | |
| Width: | 95 mm |
| Depth: | 70 mm |
| Height: | 26 mm |
| Weight: | 300 g |
| Operational conditions | |
| Operating temperature (T-T): | -10 - 55 °C |
| Packaging data | |
| Package width: | 130 mm |
| Package depth: | 250 mm |
| Package height: | 55 mm |
| Package volume: | 1787.5 cm³ |
| Package weight: | 350 g |
| Packaging content | |
| AC adapter included: | |
| Quick installation guide: | |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
| Master (outer) case width: | 394 mm |
| Master (outer) case length: | 550 mm |
| Master (outer) case height: | 254 mm |
| Master (outer) case gross weight: | 7 kg |
| Master (outer) case volume: | 55041.8 cm³ |
| Products per master (outer) case: | 20 pc(s) |
| UK Trade Tariff code: | 85176200 |
Price:
58,99 €
19 % VAT incl. excl. Shipping costs
