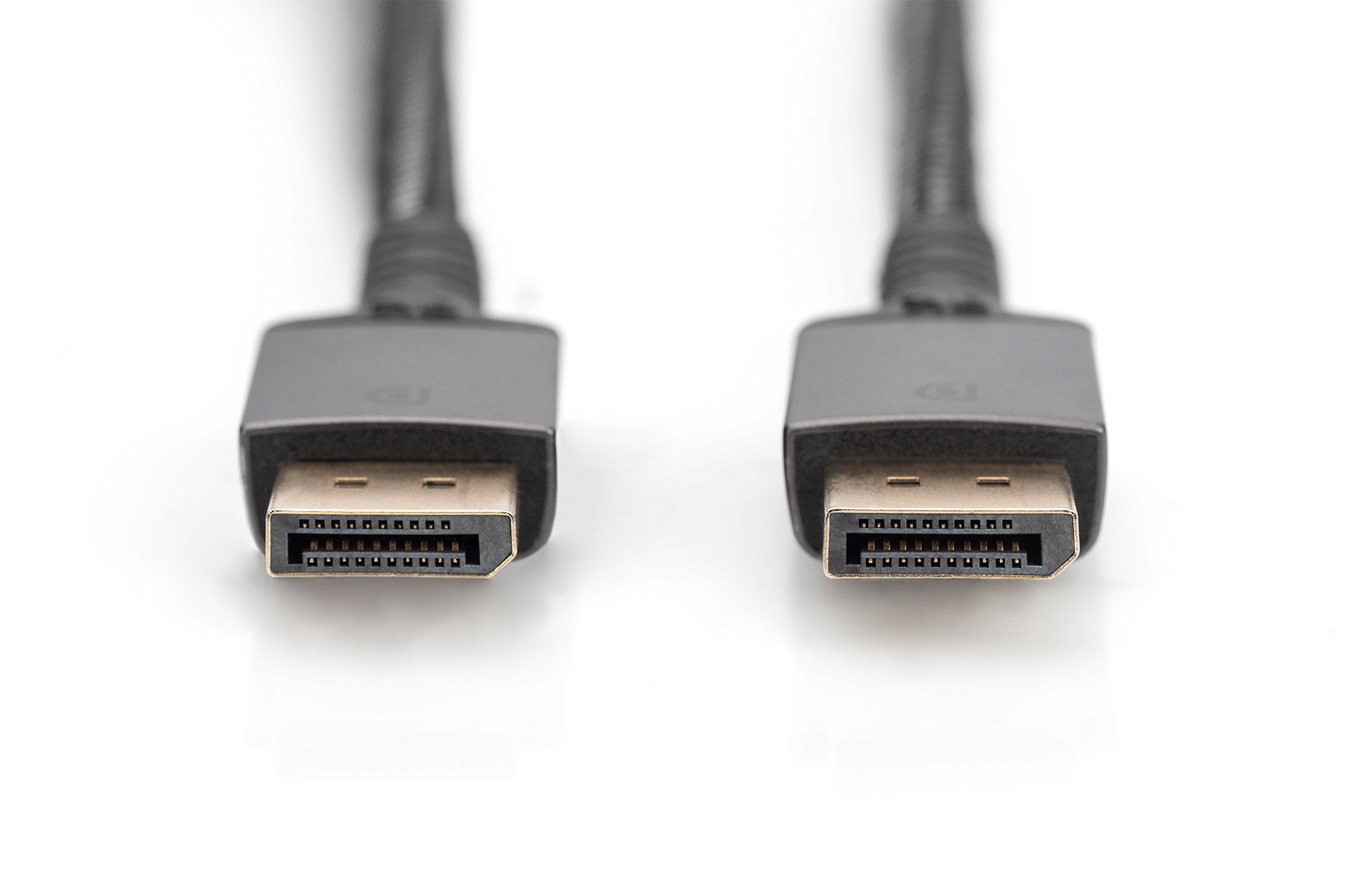

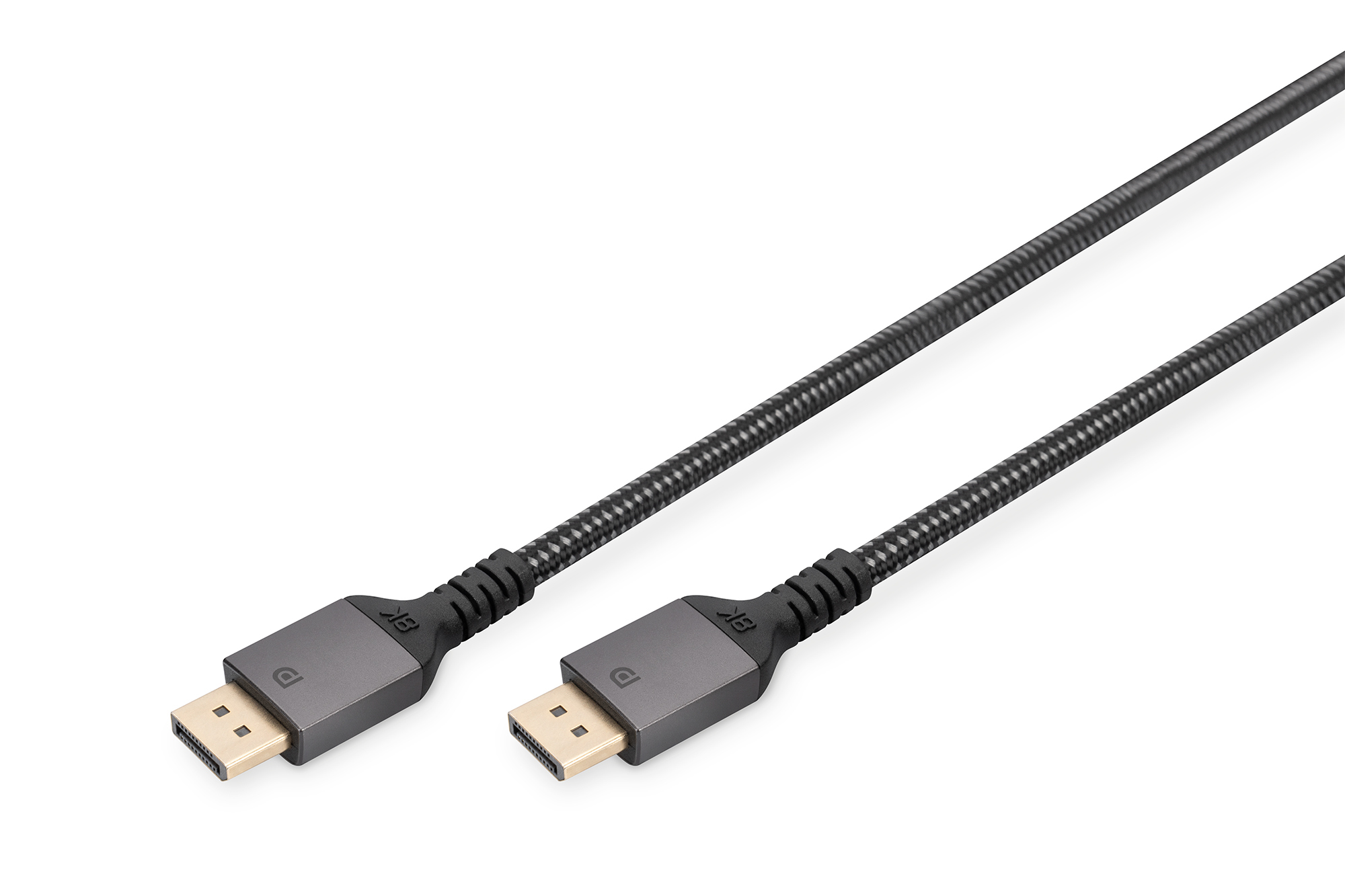

Digitus 8K DisplayPort Connection Cable Version 1.4
Product no.: DB-340201-030-S
The Digitus® 8K DisplayPort Connection Cable Version 1.4 already meets the requirements for future high-definition devices (TV, projector, monitor) of the next generation. The ultimate 8K experience with Ultra-HD II resolutions of up to 7680 x 4320 and high speed (32.4 Gbps) with a refresh rate of 60 Hertz- DisplayPort plug to DisplayPort plug- Connects PC/Computer, notebook or graphics card for gaming with DP-capable devices such as TVs, screens, monitors, projectors, displays- Supports the video formats 4K/2K@120Hz, 5K@60Hz or 8K@60Hz and resolutions of 3840 x 2160p, 5120 x 2880p and 7680 x 4320p- Compatible with DP standards 1.4, 1.3 and 1.2- The gold-plated precision plugs provide optimal signal quality and corrosion protection- With aluminum housing and nylon mesh, the cable offers optimal quality and protection.With this cable standard, the DisplayPort cable supports all current requirements from the transmission of high-resolution UHD 8K content, 8-channel audio transmission and support of HDCP and DPCP encryption. Mirror your notebook desktop onto a large monitor or expand your desktop with an additional display using DisplayPort. High-speed data transfer is possible with this high-quality cable, no judder even during the most demanding graphics applications or games. Gold-plated contacts and double shielding of the cable ensure maximum conductivity and interference-free transmission.
| Features | |
| Cable length: | 3 m |
| Connector 1: | DisplayPort |
| Connector 2: | DisplayPort |
| Connector 1 gender: | Male |
| Connector 2 gender: | Male |
| Maximum resolution: | 7680 x 4320 pixels |
| Product colour: | Black |
| Connector 1 form factor: | Straight |
| Connector 2 form factor: | Straight |
| Connector contacts plating: | Gold |
| DisplayPort version: | 1.4 |
| Maximum refresh rate: | 120 Hz |
| HDCP: |  |
| HDCP version: | 2.2 |
| Display Stream Compression (DSC): | |
| Display Stream Compression (DSC) version: | 1.2 |
| 3D: | |
| Connector 1 lockable: | |
| Connector 2 lockable: | |
| Magnetically shielded: | |
| Number of shielding layers: | 2 |
| AWG wire size: | 30 |
| High Dynamic Range (HDR) supported: | |
| Data transfer rate: | 32.4 Gbit/s |
| Dolby technologies: | Dolby TrueHD, DTS-HD Master Audio |
| Plug and Play: | |
| Channels quantity: | 32 channels |
| Colour sampling: | 4:4:4 |
| Cable type: | Round cable |
| Country of origin: | China |
| Operational conditions | |
| Operating temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 0 - 95% |
| Packaging data | |
| Cable diameter: | 6.8 mm |
| Quantity per pack: | 1 pc(s) |
| Package width: | 160 mm |
| Package depth: | 160 mm |
| Package height: | 20 mm |
| Package weight: | 200 g |
| Package volume: | 512 cm³ |
Price:
31,99 €
19 % VAT incl. excl. Shipping costs
