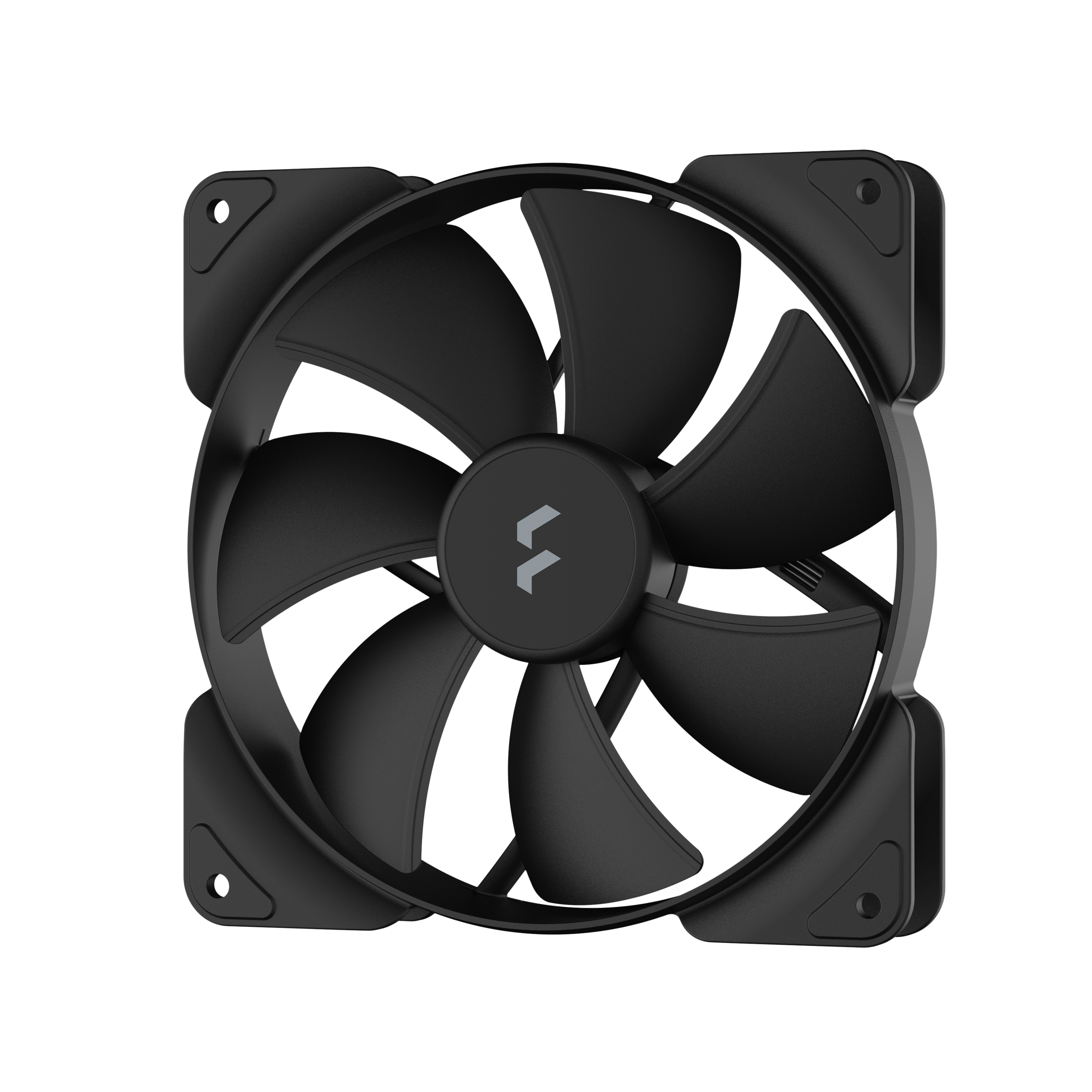

Fractal Design Aspect 14 PWM Computer case Fan 14 cm Black 1 pc(s)
Product no.: FD-F-AS1-1403

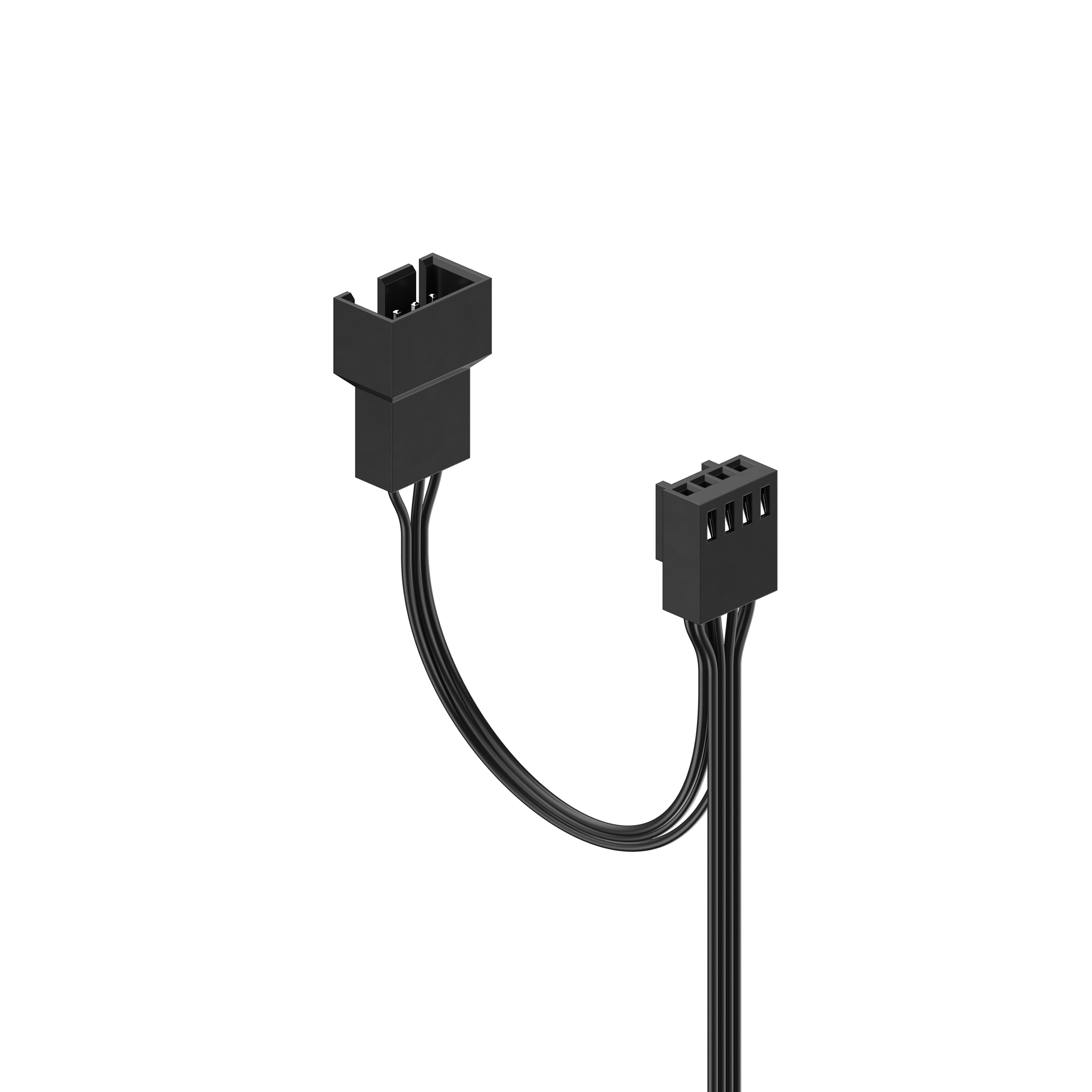

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.Less turbulence- The aerodynamic stator struts decrease turbulence and noise caused by flowing air- The Aspect frame offers aesthetics without compromising on performance- PWM control with a wide RPM speed rangeRifle bearingsMore efficient than standard sleeve bearingsMinimalistic nozzle frameThe Aspect frame offers aesthetics without compromising on performanceTrip Wire TechnologyIntroducing a micro-turbulent layer for enhanced blade efficiencyChain featureSimplify cable management by using the Aspect chain feature for multiple units
| Performance | |
| Suitable location: | Computer case |
| Type: | Fan |
| Fan diameter: | 14 cm |
| Supported processor sockets: | Not supported |
| Compatible processor series: | Not supported |
| Rotational speed (min): | 500 RPM |
| Rotational speed (max): | 1700 RPM |
| Noise level (low speed): | 10 dB |
| Noise level (high speed): | 35.5 dB |
| Minimum airflow (imperial): | 20 cfm |
| Maximum airflow: | 78 cfm |
| Airflow: | 132.5 m³/h |
| Minimum air pressure: | 0.3 mmH2O |
| Maximum air pressure: | 2.05 mmH2O |
| Bearing type: | Rifle bearing |
| Quantity per pack: | 1 pc(s) |
| Mean time between failures (MTBF): | 90000 h |
| Design | |
| Product colour: | Black |
| Number of fans: | 3 fan(s) |
| Number of fan blades: | 7 |
| Fan connector: | 4-pin |
| Power | |
| Power consumption (typical): | 2.16 W |
| Voltage: | 12 V |
| Starting voltage: | 7 V |
| Maximum current: | 0.24 A |
| Weight & dimensions | |
| Weight: | 155 g |
| Fan dimensions (W x D x H): | 140 x 140 x 25 mm |
| Cable length: | 0.5 m |
| Package width: | 143 mm |
| Package depth: | 212 mm |
| Package height: | 30 mm |
| Package weight: | 187 g |
| Packaging content | |
| Screws included: |  |
| Number of screws: | 4 |
| Other features | |
| Country of origin: | China |
| Logistics data | |
| Harmonized System (HS) code: | 84733080 |
Price:
30,99 €
19 % VAT incl. excl. Shipping costs
