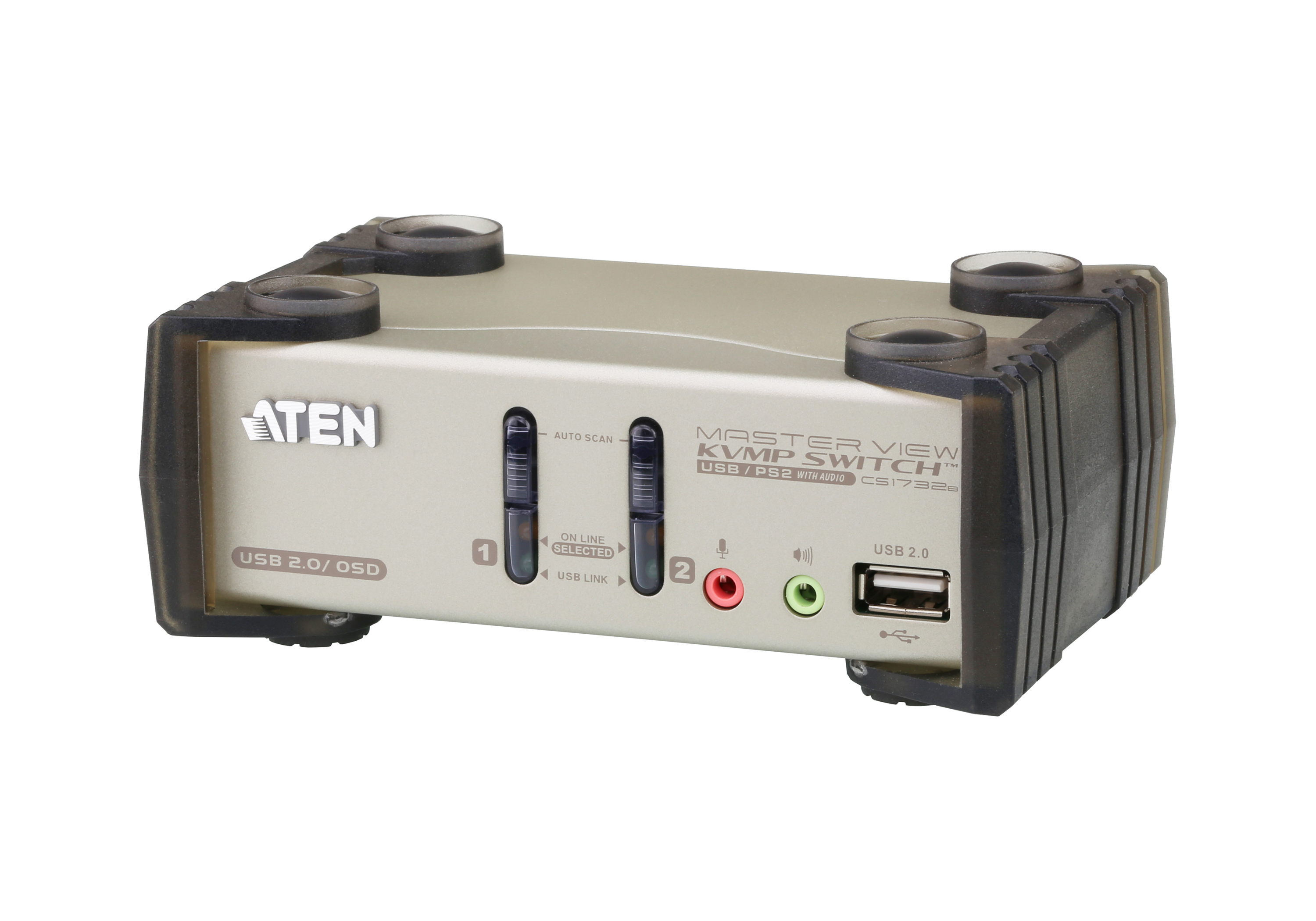

ATEN CS1732B KVM switch
Product no.: CS1732B
The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse.
| Ports & interfaces | |
| Number of computers controlled: | 2 |
| Keyboard port type: | USB, PS/2 |
| Mouse port type: | USB, PS/2 |
| Video port type: | VGA |
| Console ports: | 3.5mm headphone, 3.5mm mic |
| USB hub: |  |
| USB 2.0 ports quantity: | 2 |
| USB version: | 2.0 |
| Audio connections: | |
| Headphone outputs: | 4 |
| Performance | |
| Maximum resolution: | 2048 x 1536 pixels |
| Video bandwidth: | 60 Hz |
| Scan interval: | 1,255 s |
| DDC2B support: | |
| Firmware upgradeable: | |
| Design | |
| Housing material: | Metal |
| Cable length: | 1.2 m |
| LED indicators: | Network, USB |
| Push button: | |
| Hot keys: | |
| Display | |
| On Screen Display (OSD): | |
| Power | |
| Power source: | DC |
| DC input voltage: | 5.3 V |
| Power consumption (typical): | 2.5 W |
| System requirements | |
| Windows operating systems supported: | |
| Mac operating systems supported: | |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 0 - 80% |
| Weight & dimensions | |
| Width: | 140 mm |
| Depth: | 88 mm |
| Height: | 55.5 mm |
| Weight: | 550 g |
| Packaging content | |
| Cables included: | KVM |
| Quick installation guide: | |
| Manual: | |
Price:
112,99 €
19 % VAT incl. excl. Shipping costs
