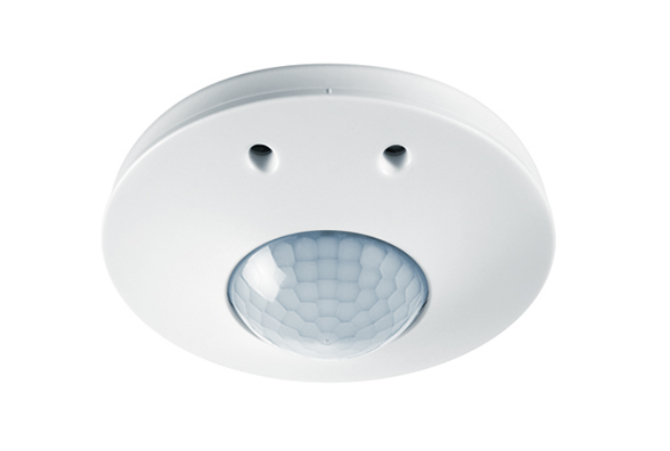

ESYLUX PD-ATMO 360i/8 A KNX Passive infrared (PIR) sensor Wired Ceiling White
Product no.: EP10427206
Thanks to its unique multi-sensor elements, the ATMO KNX presence detector ensures not only an optimal level of brightness, but also a healthy and productive ambient climate in the room. With a total of six sensors in just one device, there is no need for several individual solutions. This shows just how easy it is to accommodate complex requirements using intelligent technology.
| Security | |
| Sensor type: | Passive infrared (PIR) sensor |
| Connectivity technology: | Wired |
| Detection distance: | 8 m |
| Features | |
| Mounting type: | Ceiling |
| Placement: | Indoor |
| Product colour: | White |
| Ultraviolet (UV) resistant: |  |
| International Protection (IP) code: | IP20 |
| Light sensitivity: | 2000 lx |
| Duration adjustment: | 30 - 300 s |
| Installation height (min): | 3 m |
| Installation height (max): | 5 m |
| Detection angle: | 360° |
| Housing material: | Polycarbonate (PC) |
| Certification: | CE , RoHS , WEEE |
| Power | |
| Power consumption: | 6 mA |
| Input voltage: | 31 V |
| Power consumption (typical): | 0.2 W |
| Power consumption (standby): | 0.3 W |
| Operational conditions | |
| Operating temperature (T-T): | 5 - 35 °C |
| Operating relative humidity (H-H): | 5 - 93% |
| Weight & dimensions | |
| Width: | 108 mm |
| Depth: | 108 mm |
| Height: | 38 mm |
| Weight: | 162 g |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Packaging content | |
| Manual: | |
