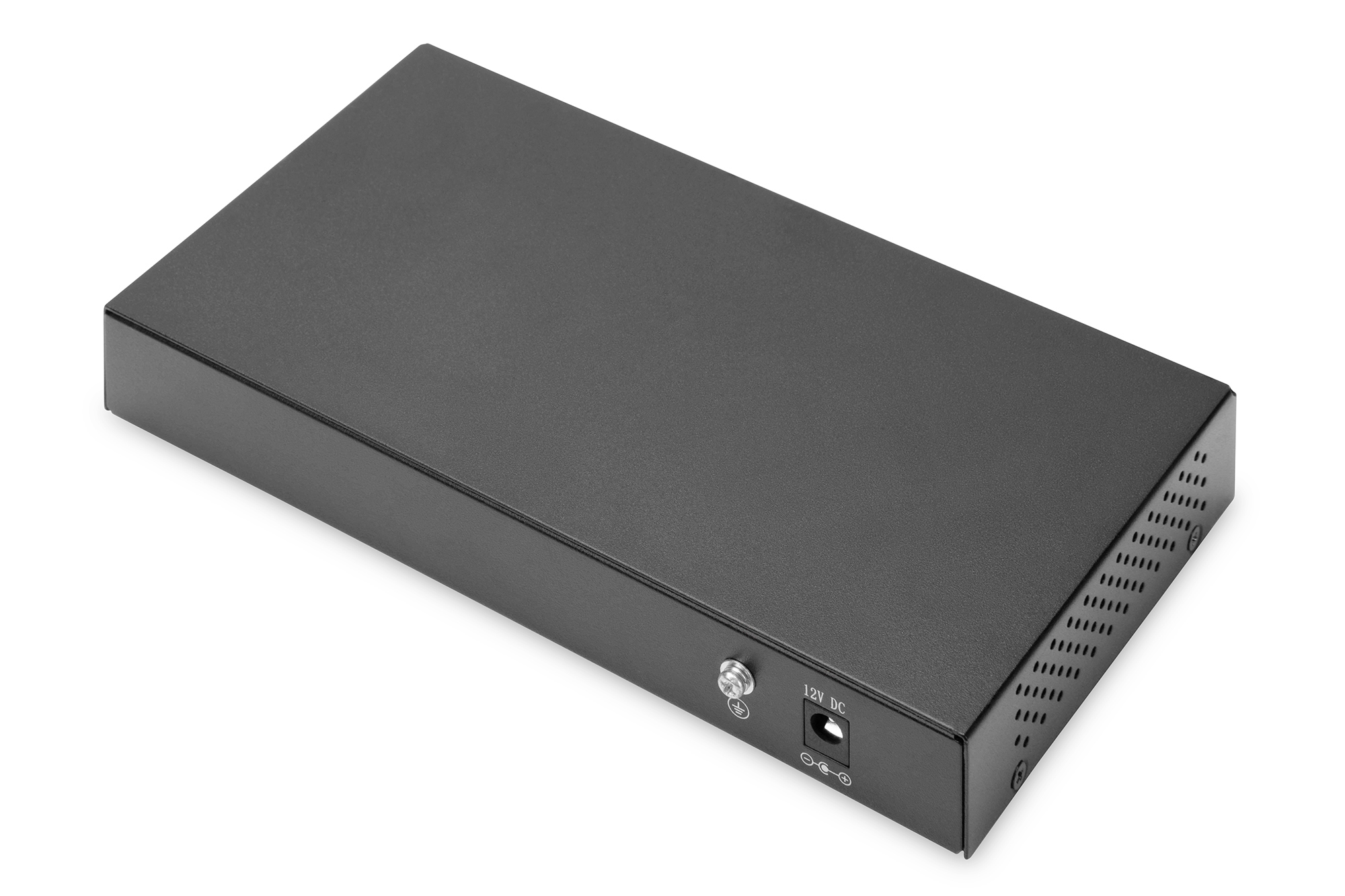

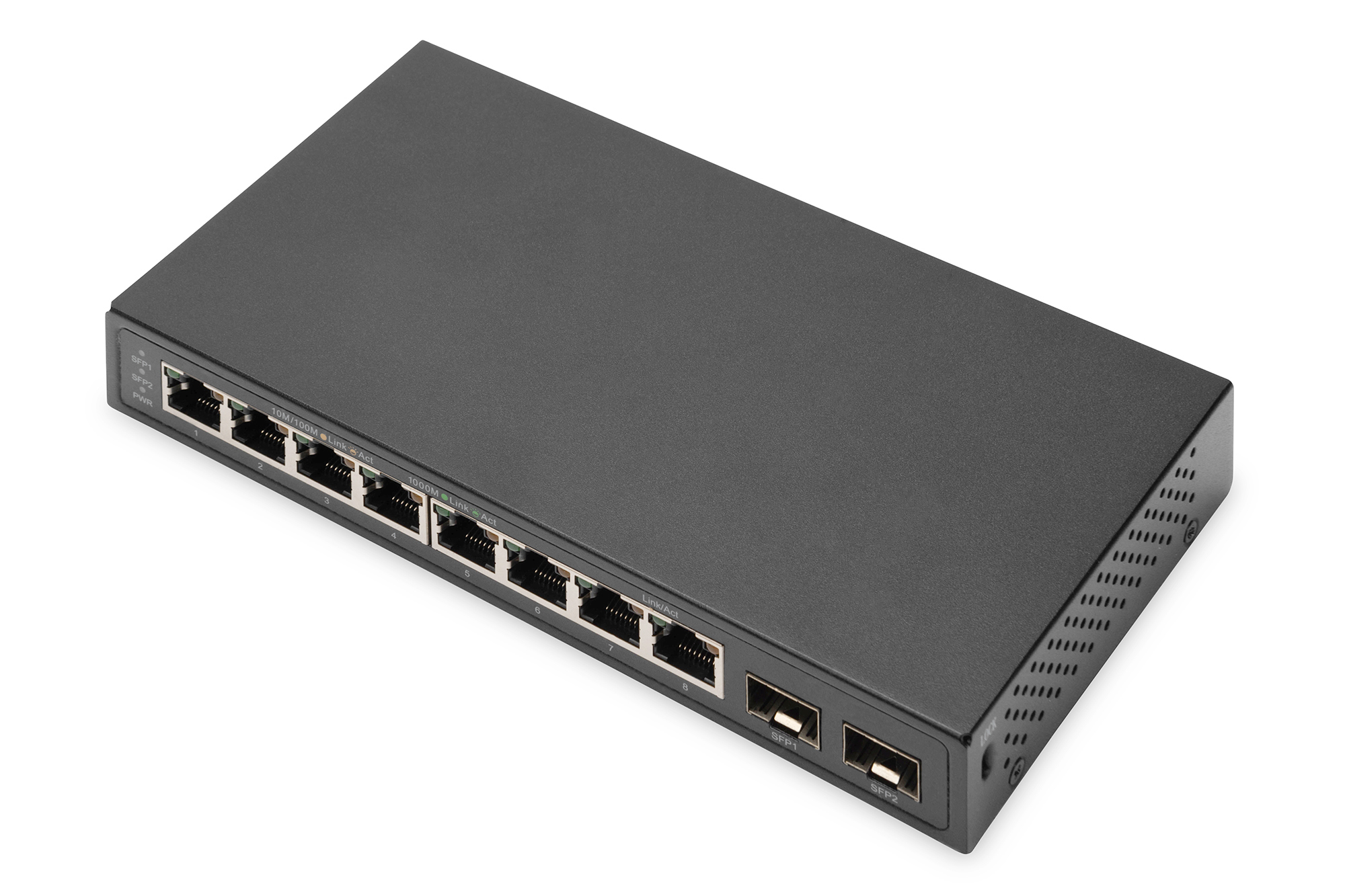

Digitus 8-Port Gigabit + 2 Gigabit SFP Ethernet, Unmanaged Switch
Product no.: DN-80067
8 x 10/100/1000 Mbit/s + 2SFP Uplink Ports- 8 x RJ45 ports 10/100/1000 Mbps- 2 ports 1000Mbps SFP Slots- Support desktop and Wall mount installation- Switching Capacity 20Gbps- Network standards: IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab- Durable metal enclosure- Fanless design (air flow cooling)- LED indicators for Link/ Activity / SpeedThe Switch is 8 ports 10/100/1000Mbps + 2 ports 100/1000Mbps SFP Slots Unmanaged Ethernet Switch. This switch is a design of high integration level, exquisite, portable, easy to operate, which is suitable for the small and medium office and home network. The switch provide you with a simple, economic, standard and high performance of network application plan, it is ideal choice to promote the department and working group performance.It provide simple and understood LED indicator light on the front panel, so that you can quickly judge the working state of the switch, and help to diagnose the network failure.
| Management features | |
| Switch type: | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity: | 8 |
| SFP module slots quantity: | 2 |
| Fiber optic connector: | SFP |
| Power connector: | DC-in jack |
| Network | |
| Networking standards: | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support: |  |
| Full duplex: |  |
| Auto MDI/MDI-X: | |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Auto-negotiation: | |
| MAC address auto-learning supported: | |
| MAC address auto-aging supported: | |
| VLAN support: | |
| Data transmission | |
| MAC address table: | 4000 entries |
| Switching capacity: | 20 Gbit/s |
| Forwarding rate: | 14.88 Mpps |
| Store-and-forward: | |
| Jumbo frames support: | |
| Jumbo frames: | 9216 |
| Packet buffer memory: | 1.5 MB |
| Design | |
| Rack mounting: | |
| Stackable: | |
| Product colour: | Black |
| Housing material: | Metal |
| LED indicators: | Activity, Power, Link |
| Vandal-proof: | |
| Suitable for outdoor use: | |
| Country of origin: | China |
| Performance | |
| Fanless: | |
| Power | |
| Power source: | AC/DC |
| Power supply included: | |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| DC input voltage: | 5 V |
| Input current: | 1 A |
| Power consumption (typical): | 5 W |
| Power consumption (max): | 5.78 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 45 °C |
| Operating relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width: | 190 mm |
| Depth: | 100 mm |
| Height: | 28 mm |
| Weight: | 378 g |
| Packaging data | |
| Quick start guide: | |
| Package width: | 256 mm |
| Package depth: | 158 mm |
| Package height: | 79 mm |
| Package volume: | 3195.39 cm³ |
| Package weight: | 810 g |
| Other features | |
| Ethernet interface type: | Gigabit Ethernet |
