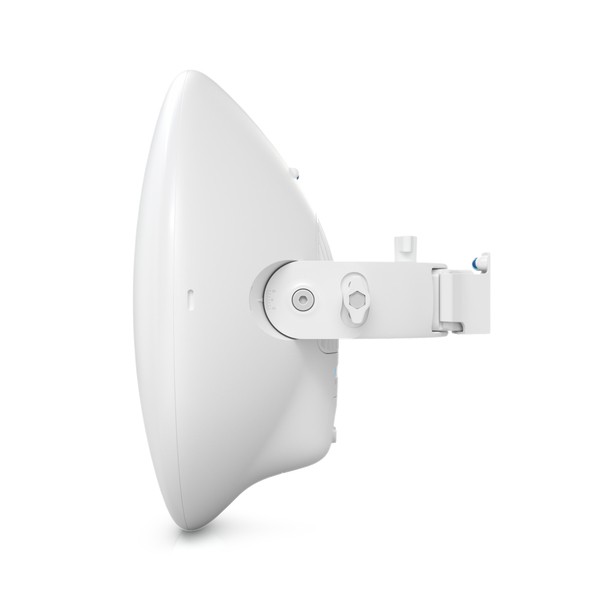

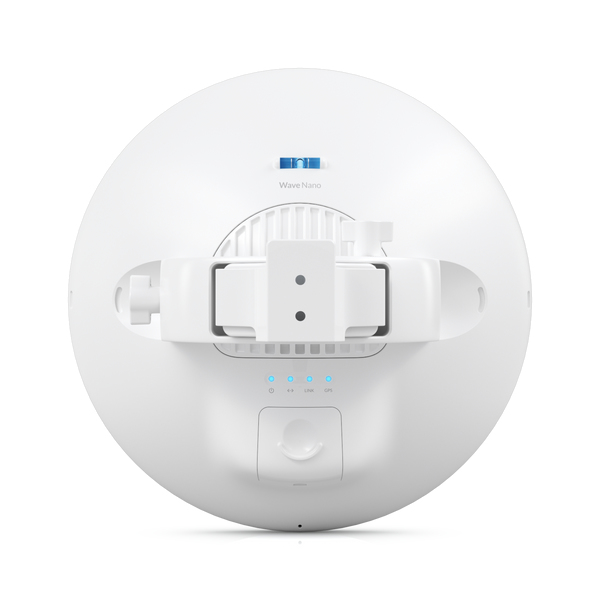

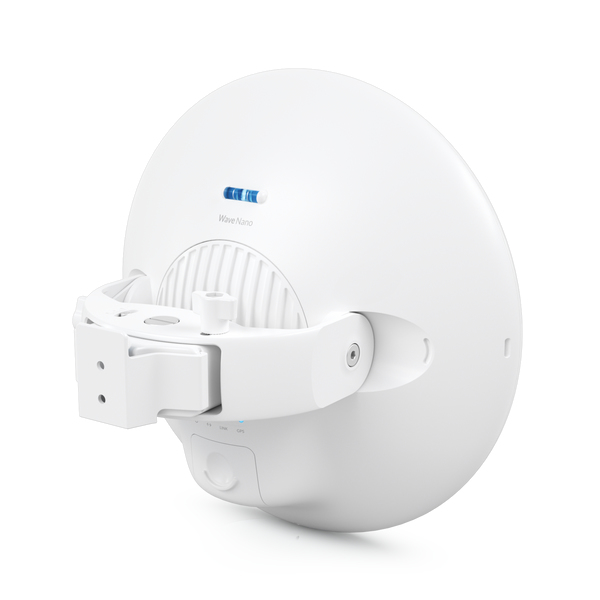

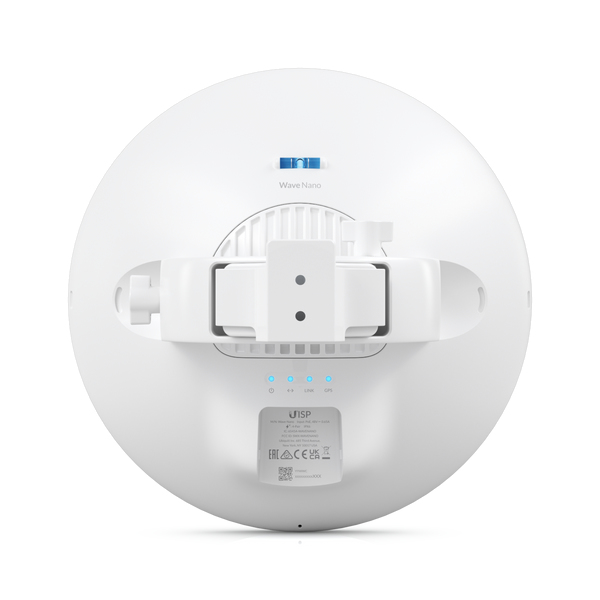

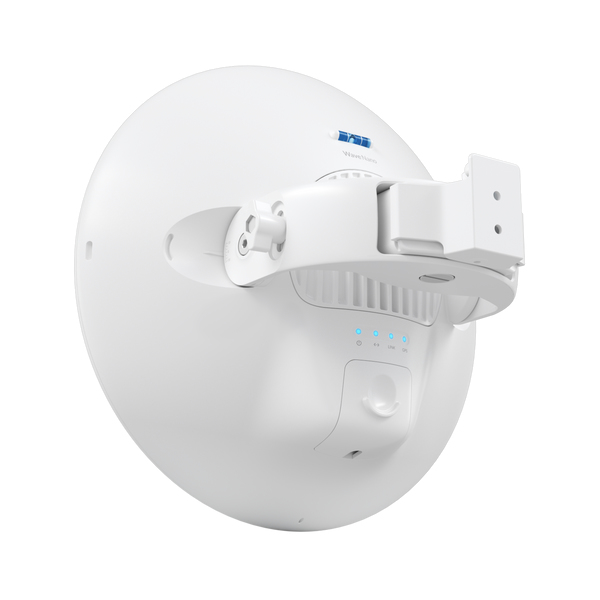

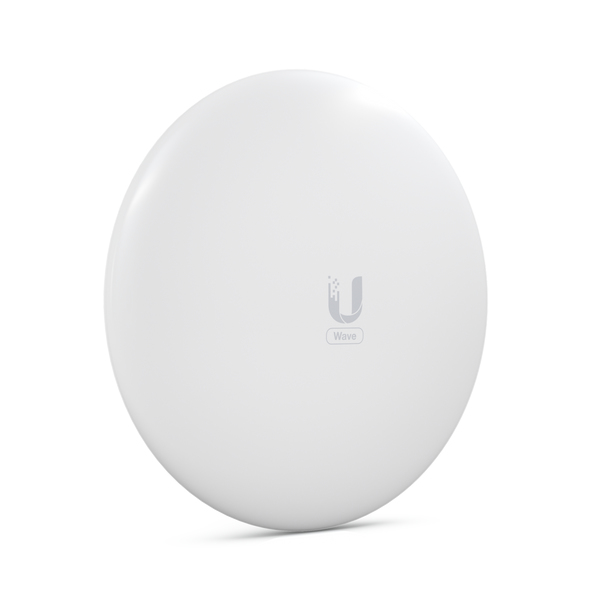

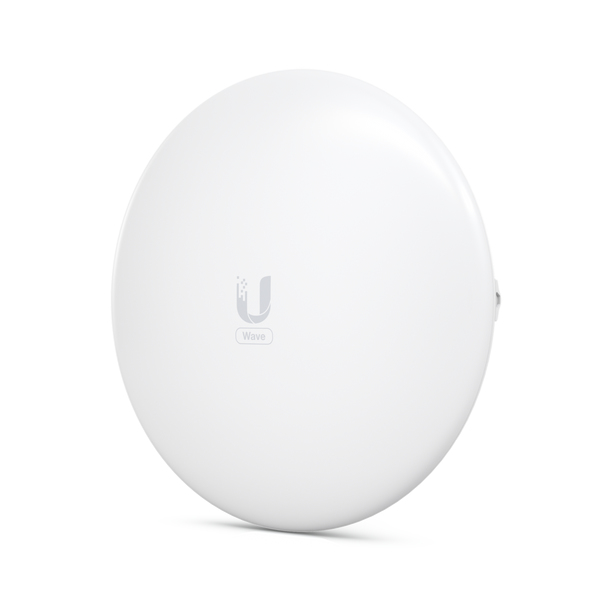

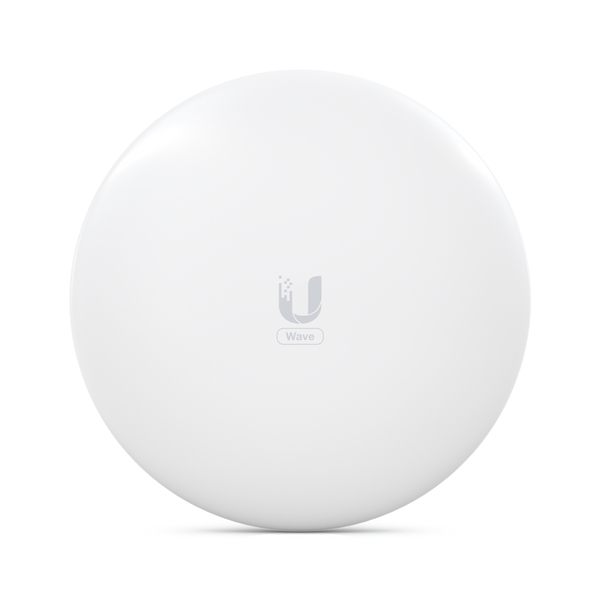

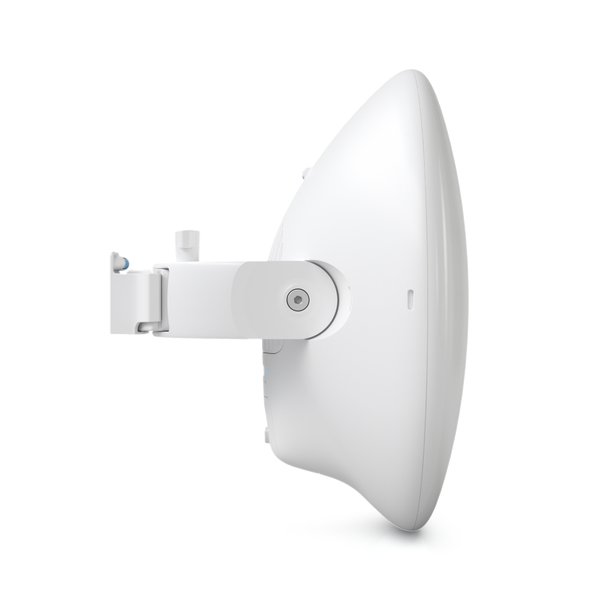

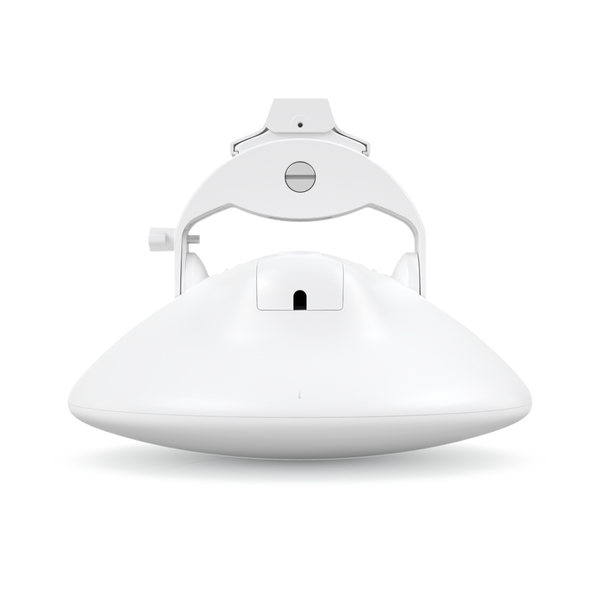

Ubiquiti Networks UISP Wave Nano Network transmitter White 10, 100, 1000 Mbit/s
Product no.: WAVE-NANO
60 GHz PtMP station powered by Wave Technology.Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.
| Performance | |
| Type: | Network transmitter |
| Maximum transfer distance: | 5000 m |
| Data transfer rate: | 2000 Mbit/s |
| Chipset: | Dual ARM® Cortex®-A53 cores at 1 GHz |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| International Protection (IP) code: | IPX6 |
| Mobile operating systems supported: | Android, iOS |
| Antenna | |
| Antenna gain level (max): | 41 dBi |
| Network | |
| Cabling technology: | 10/100/1000Base-T(X) |
| Wi-Fi: |  |
| Wi-Fi standards: | Wi-Fi 6 (802.11ax) |
| Wi-Fi band: | Single-band (60 GHz) |
| Security algorithms: | AES, WPA2-PSK |
| Web-based management: | |
| Modulation: | 8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK |
| Ports & interfaces | |

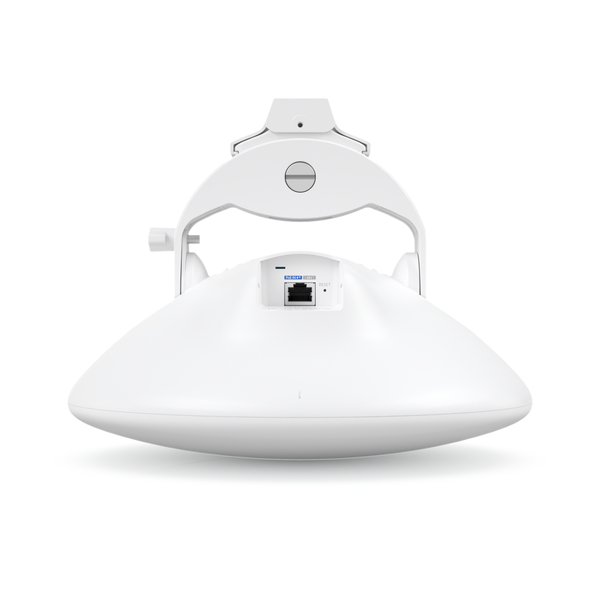

| Ethernet LAN (RJ-45) ports: | 1 |
| Design | |
| Product colour: | White |
| Housing material: | Aluminium, Plastic |
| Mounting type: | Pole |
| Rack mounting: |  |
| LED indicators: | |
| Quantity per pack: | 1 pc(s) |
| Reset button: | |
| Certification: | FCC, IC, |
| Power | |
| Power consumption (transmitter) (max): | 18 W |
| Power over Ethernet (PoE): | |
| Operational conditions | |
| Operating temperature (T-T): | -40 - 60 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Weight & dimensions | |
| Width: | 256.5 mm |
| Depth: | 113.5 mm |
| Height: | 256.5 mm |
| Weight: | 932 g |
| Memory | |
| Internal memory: | 512 MB |
| Technical details | |
| Sustainability compliance: | |
| Sustainability certificates: | CE |
