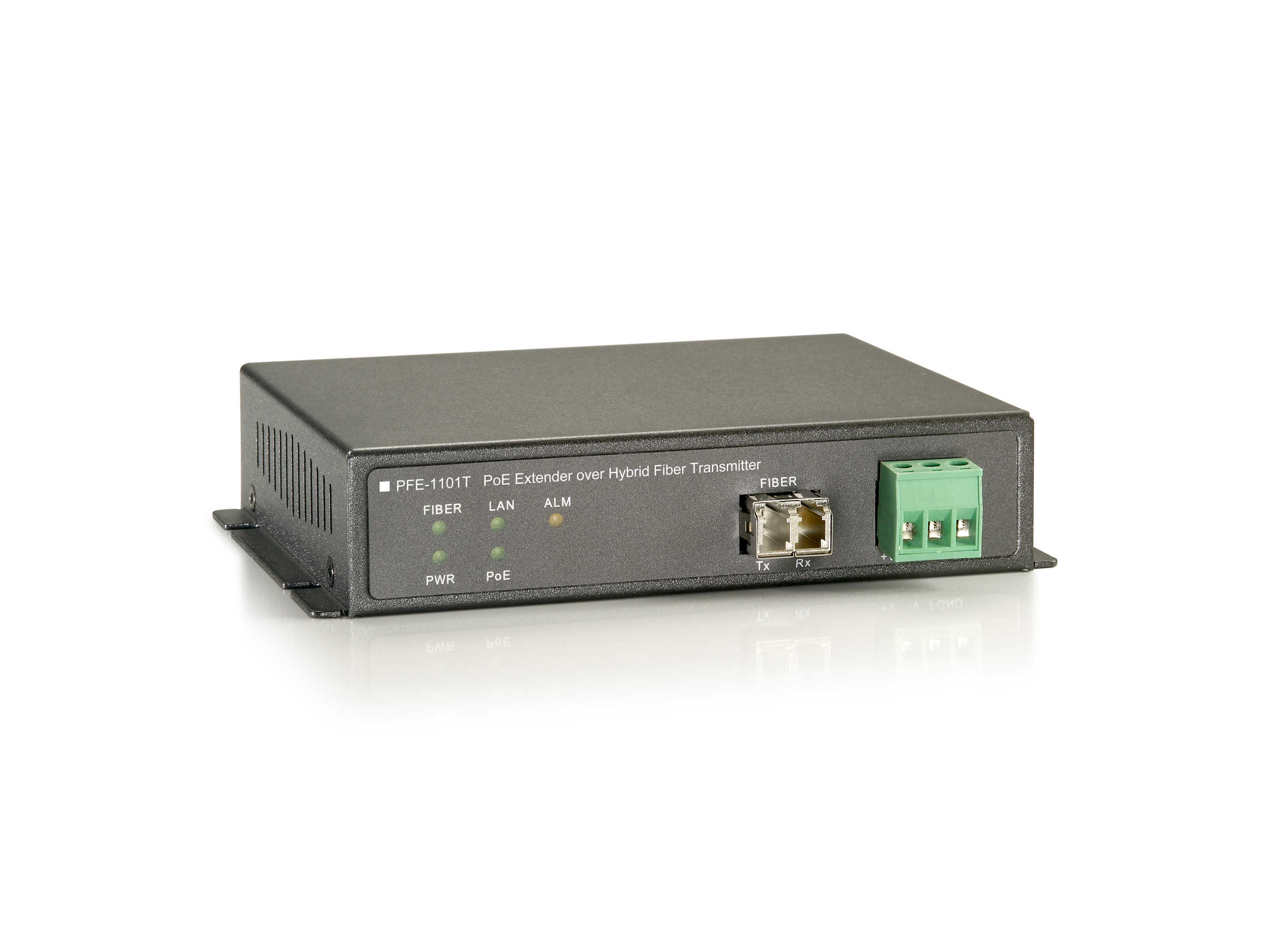

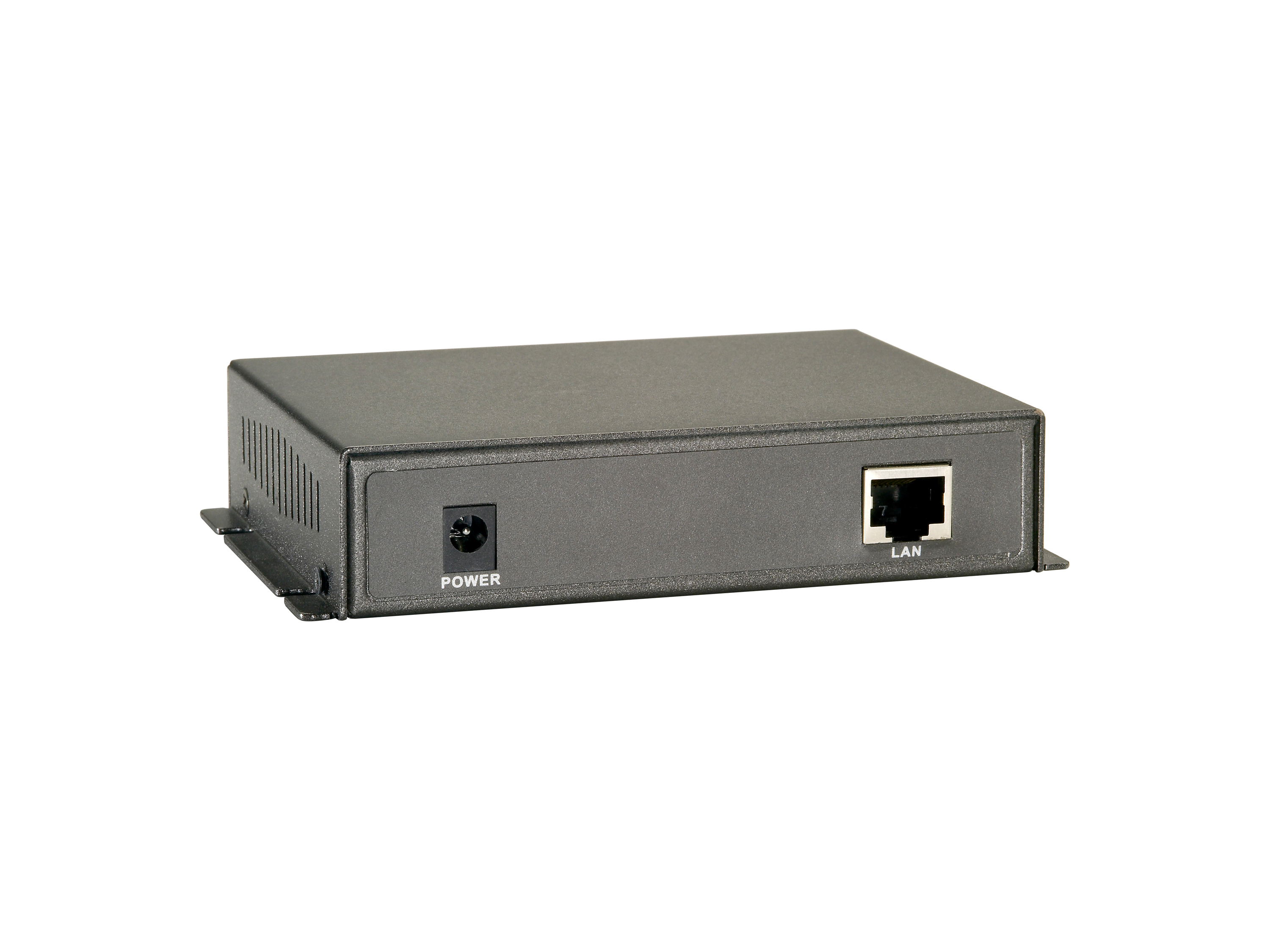

LevelOne PoE over Hybrid Cable Transmitter, 120W
Product no.: PFE-1101T

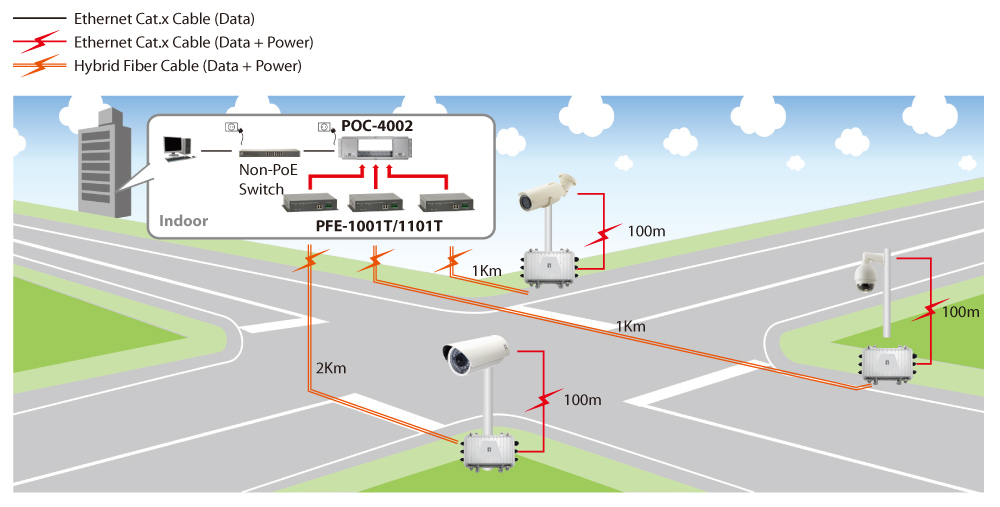

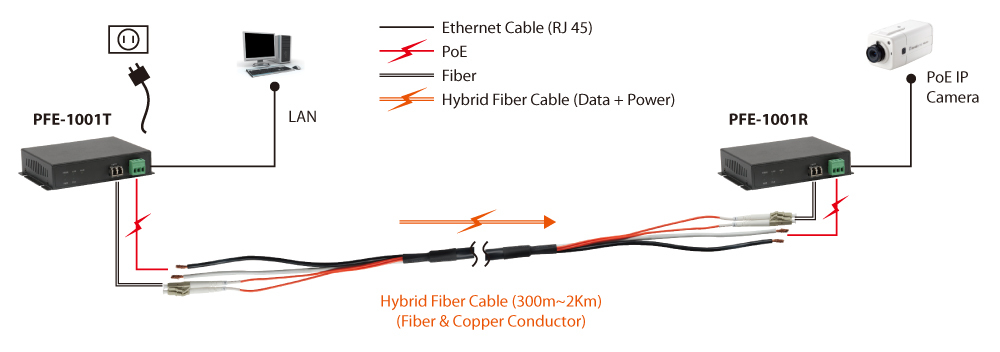

Using hybrid fiber and copper cable, the LevelOne PFE range can deliver integrated power and data over a distance of 6,800 ft (2km) to a receiver which provides high-power PoE output for IP surveillance applications. A tough outdoor range (PFE-1011/1014) provides the same performance within a durable IP66-rated waterproof housing for harsh environmental conditions and temperature range of -40°C to 60°C.- Extend data and power up to 2km via a single Hybrid Fiber Cable- Enable PoE devices to distant remote location- Supporting high power consumption devices (up to 60W at 450m link)- Flexible installation option - 1 or 4 PoE output receivers selectable- Outdoor casing protects operation under wide temperature range (PFE-1011R/1014R)- Outdoor weatherproof models are sustainable from water and dust (PFE-1011R/1014R)
| Performance | |
| Type: | Network transmitter |
| Maximum transfer distance: | 2000 m |
| Data transfer rate: | 100 Mbit/s |
| Auto MDIX IEEE: |  |
| Auto-negotiation: | |
| Duplex system: | Full |
| Network | |
| Cabling technology: | 10/100Base-T(X) |
| Networking standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 1 |
| Design | |
| Product colour: | Black |
| LED indicators: | LAN, PoE, Power |
| Certification: | CE, FCC |
| Power | |
| AC input voltage: | 100-240 V |
| AC input frequency: | 50 - 60 Hz |
| Power consumption (typical): | 120 W |
| External power adapter: | |
| Power over Ethernet (PoE): | |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | 0 - 60 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width: | 133 mm |
| Depth: | 90 mm |
| Height: | 28 mm |
| Weight: | 250 g |
| Packaging content | |
| Quick start guide: | |
| AC adapter included: | |
| Packaging data | |
| Package width: | 222 mm |
| Package depth: | 146 mm |
| Package height: | 78 mm |
| Package weight: | 200 g |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
Price:
316,99 €
19 % VAT incl. excl. Shipping costs
