Digitus Industrial 7 Port Gigabit PoE Switch, Unmanaged
Product no.: DN-651113

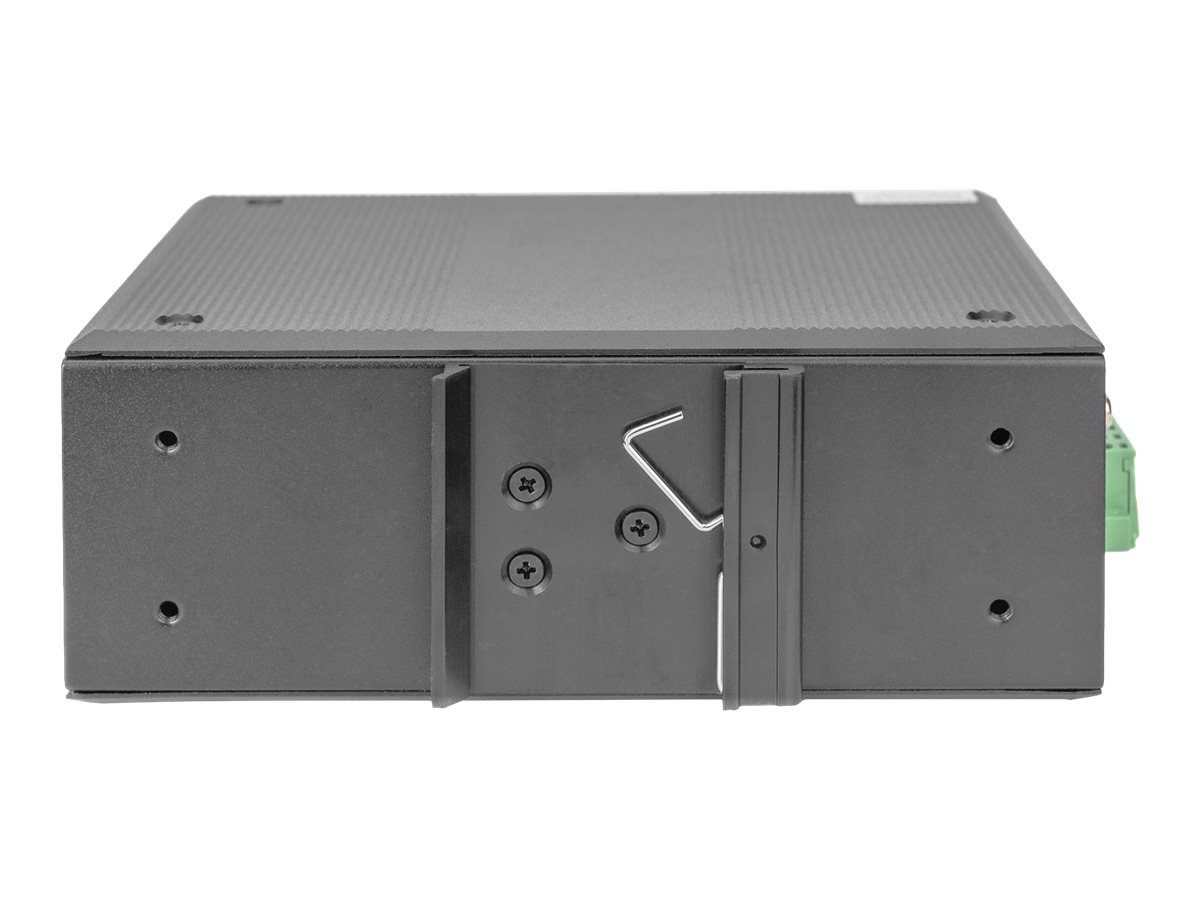

Rugged and durable industrial solutions with integrated Power over Ethernet (PoE) function- 7x 10/100/1000Base-TX Ethernet PoE ports- 1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port- DIN rail mounting possibleThe DIGITUS® industrial Gigabit PoE switch is intended for harsh environments where it is exposed to moisture, temperature fluctuations, and vibrations. With a temperature range of -20°C to +70°C, the industrial Gigabit PoE switch can be used under the most adverse conditions. The PoE capable devices can be powered via the PoE ports with IEEE802.3af/at support with up to 30 W per port. The switch can be powered via PoE using the PD (Power Delivery) port. This eliminates the need to connect a power supply to the switch. A constant availability in the highly sensitive areas such as transport, production, traffic and security surveillance is ensured. The simple plug-and-play system allows a fast integration of the industrial Gigabit PoE switch into the respective environment. With Gigabit connectivity the industrial Gigabit PoE switch provides a flexible, cost-effective solution for the industrial environment.
| Management features | |
| Switch type: | Unmanaged |
| Ports & interfaces | |

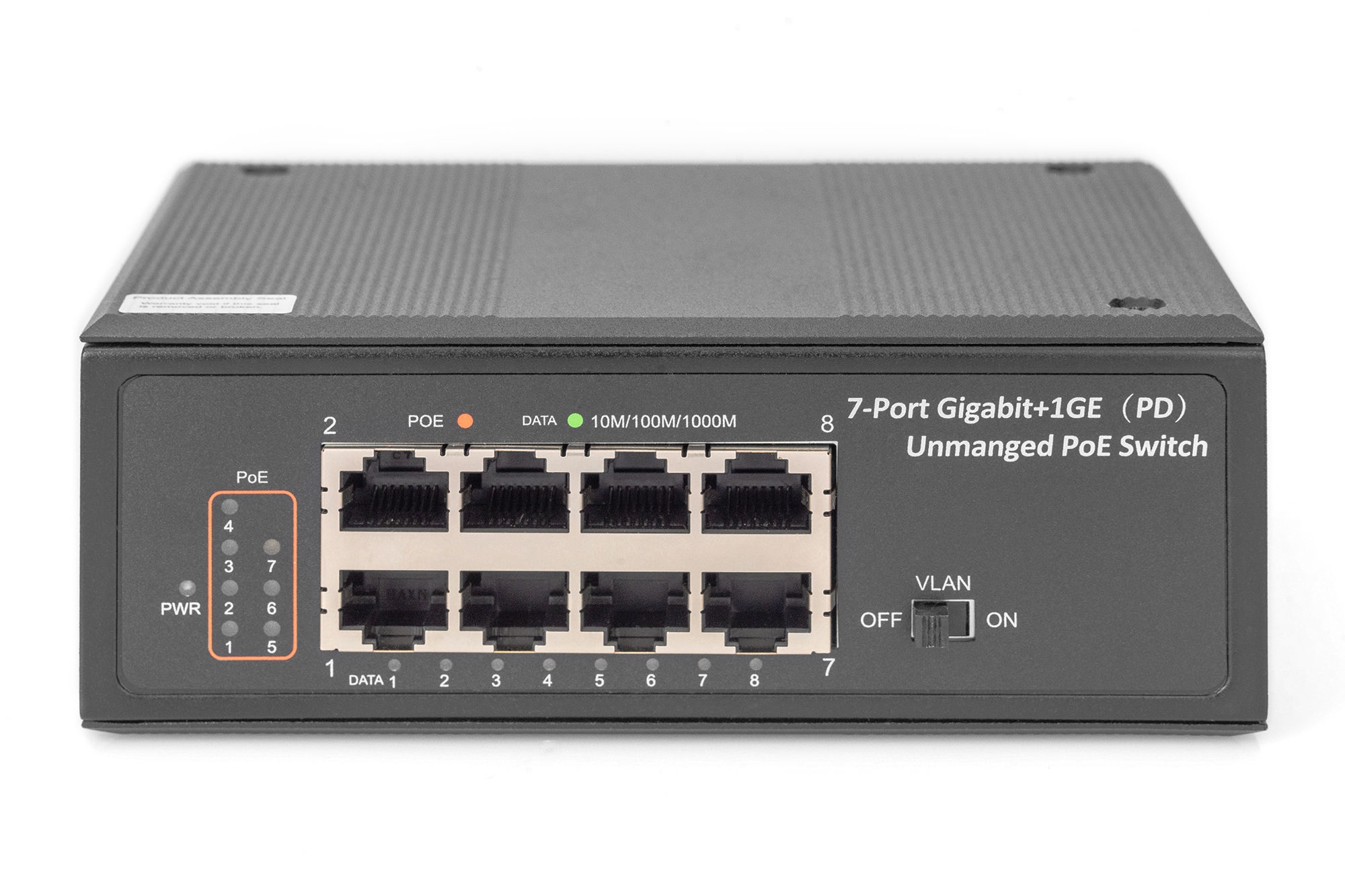

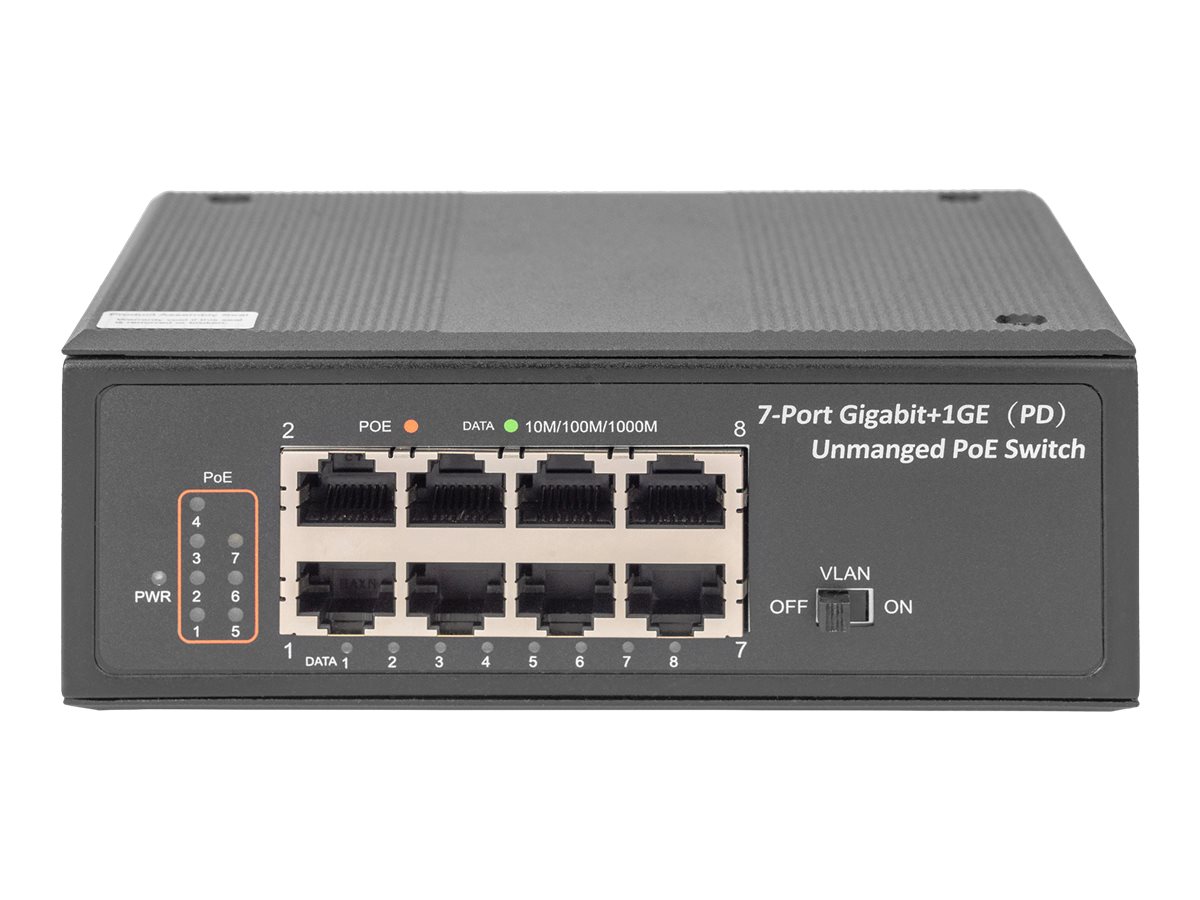

| Basic switching RJ-45 Ethernet ports quantity: | 7 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards: | IEEE 802.3at |
| 10G support: |  |
| VLAN support: |  |
| Data transmission | |
| MAC address table: | 4000 entries |
| Design | |
| Rack mounting: | |
| Product colour: | Black |

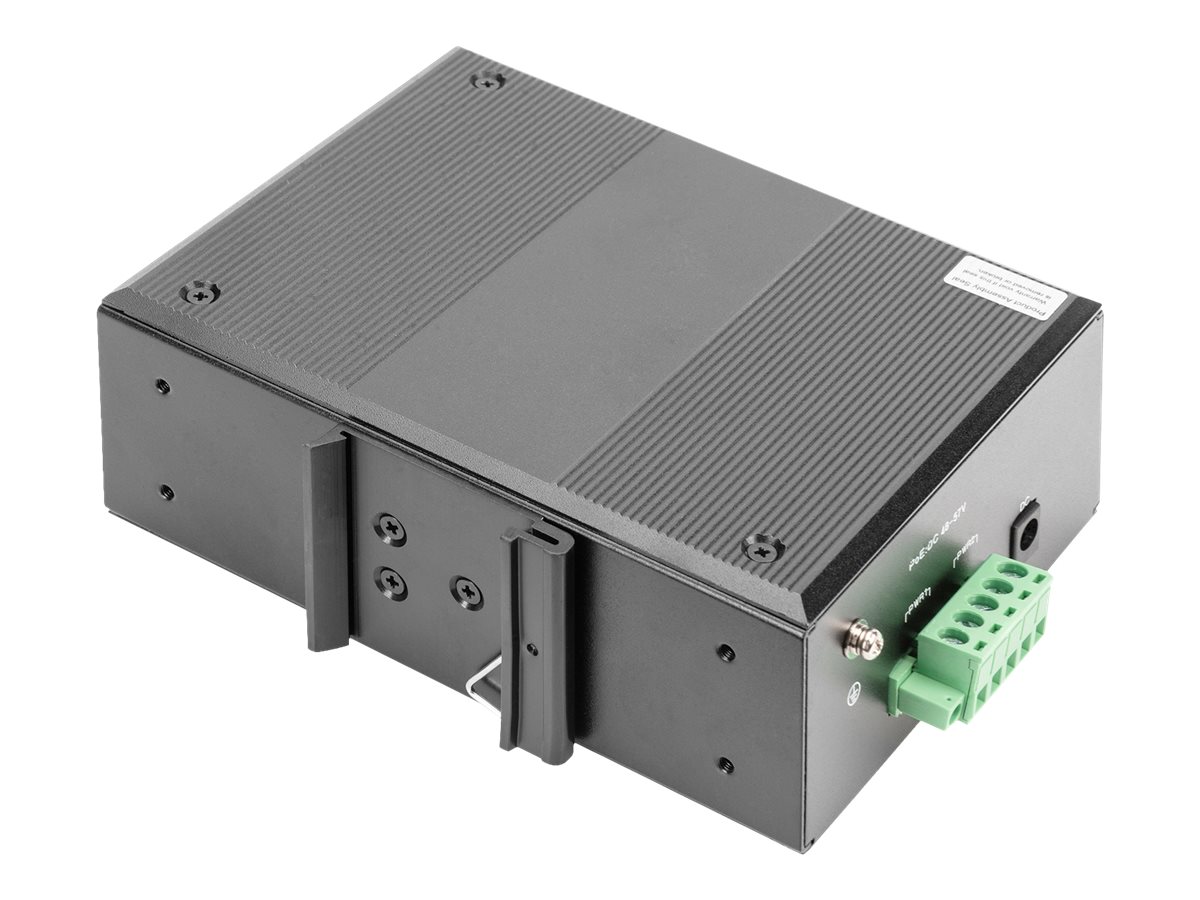

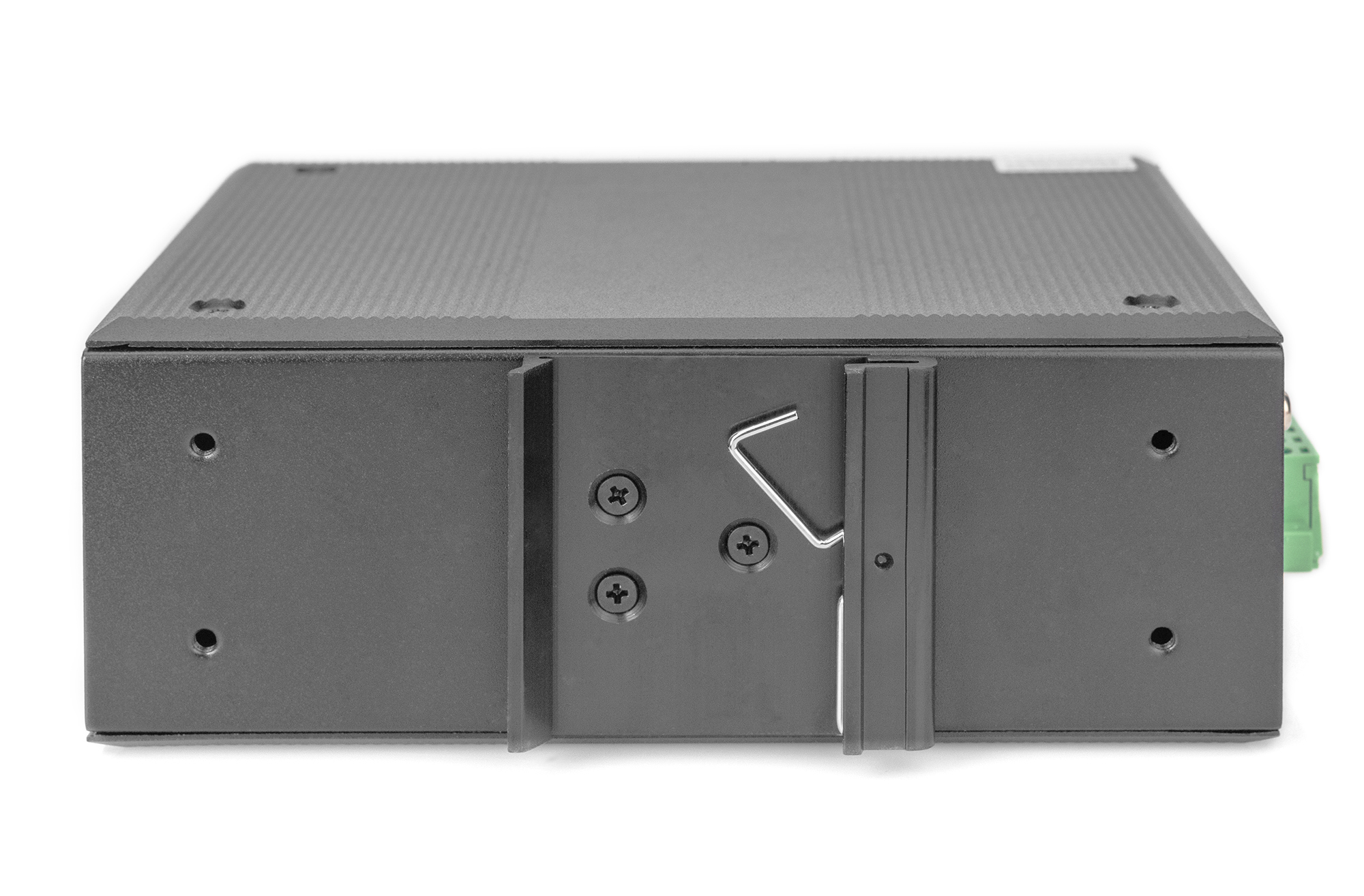

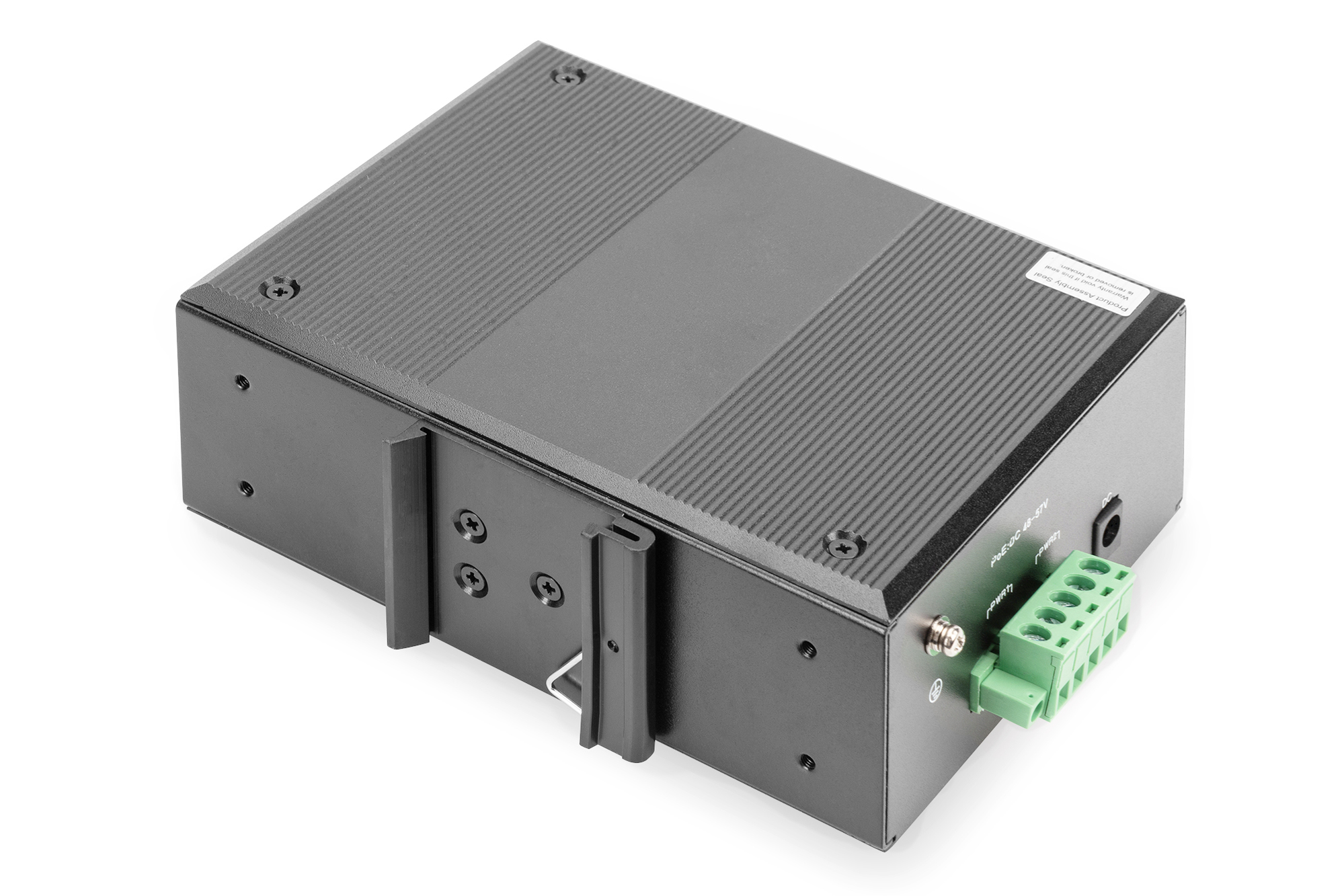

| DIN rail mounting: | |
| Vandal-proof: | |
| Suitable for outdoor use: | |
| Country of origin: | China |
| Power | |
| Redundant power supply (RPS) support: | |

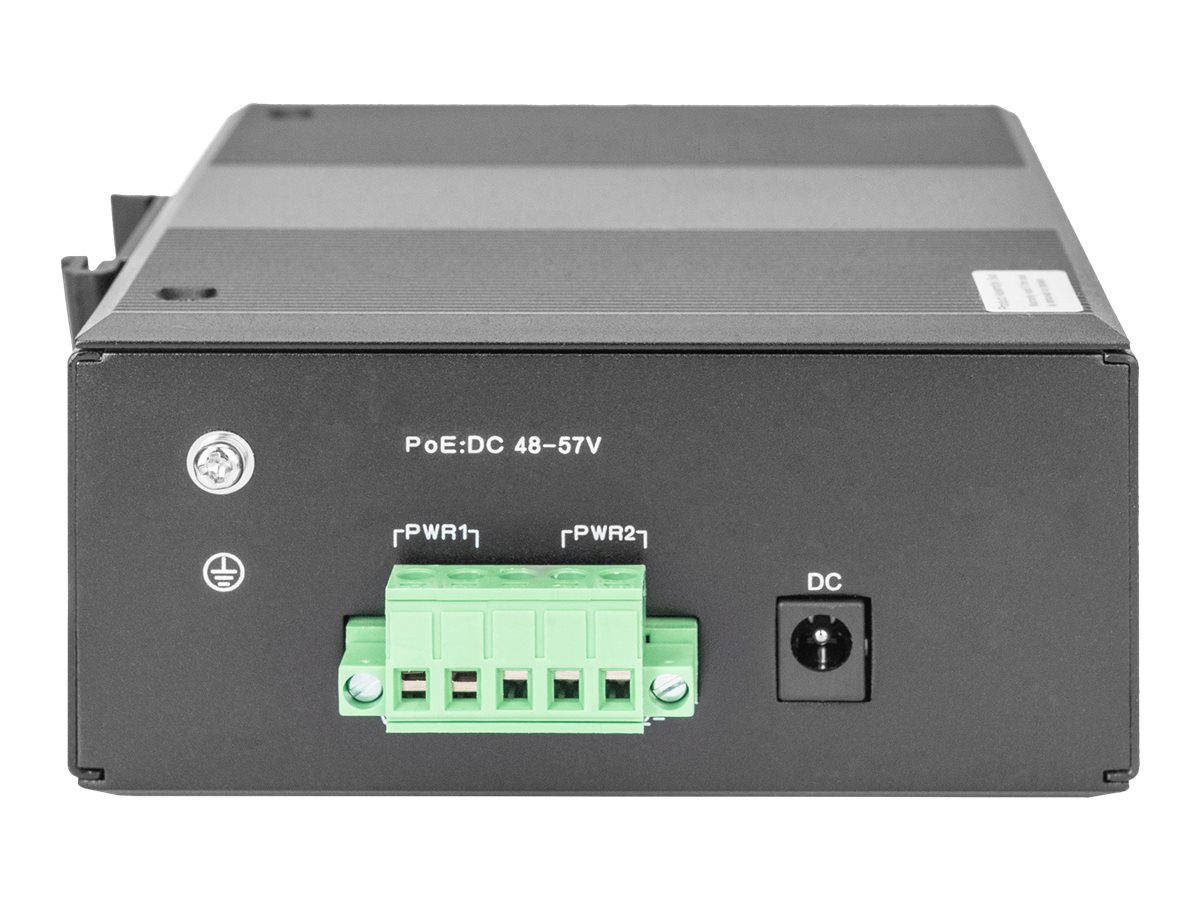

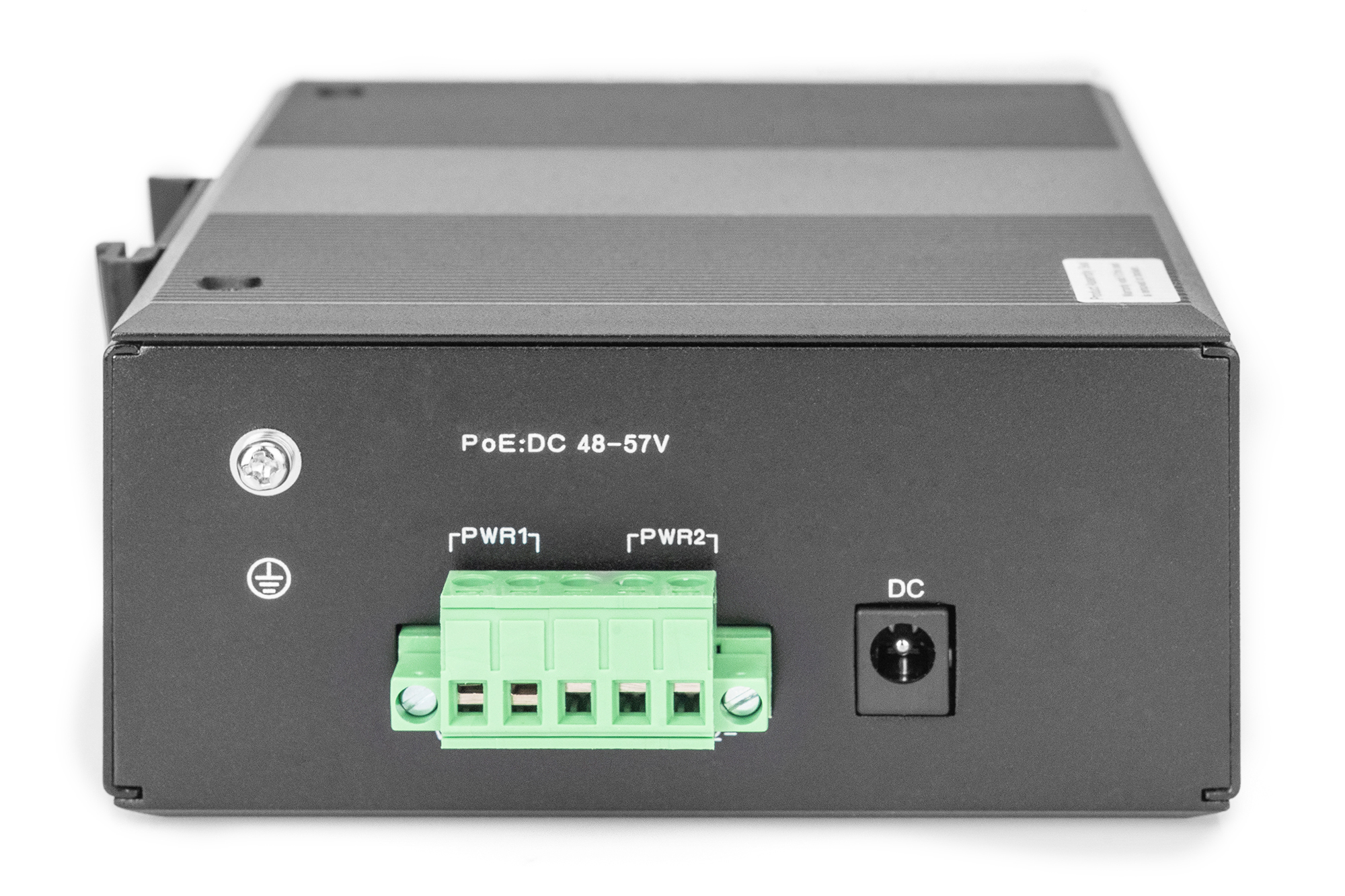

| DC input voltage: | 48 - 57 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | |
| Power over Ethernet (PoE) ports quantity: | 7 |
| Power over Ethernet (PoE) power per port: | 30 W |
| Total Power over Ethernet (PoE) budget: | 240 W |
| Operational conditions | |
| Operating temperature (T-T): | -40 - 85 °C |
| Packaging data | |
| Quick start guide: | |
| Package width: | 240 mm |
| Package depth: | 193 mm |
| Package volume: | 4168.8 cm³ |
| Package weight: | 907 g |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
| Other features | |
| Ethernet interface type: | Gigabit Ethernet |
| UK Trade Tariff code: | 85176200 |
Price:
143,99 €
19 % VAT incl. excl. Shipping costs
