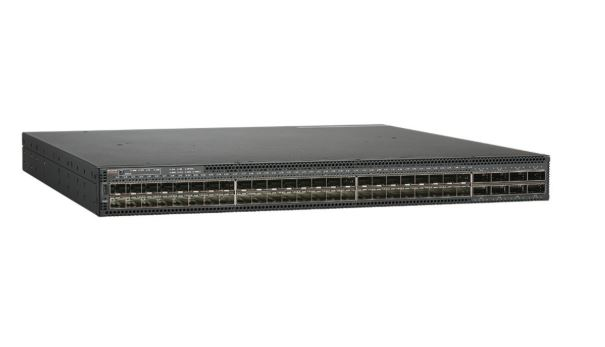

Ruckus Wireless ICX7850-48FS-E2 network switch Managed L2/L3 None 1U Black
Product no.: ICX7850-48FS-E2
High Performance Core Switches for Next Generation 100G CampusNew user demands and technology advances are increasingly putting pressure on campus networks requiring them to scale to support more devices and deliver more bandwidth. The rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is propelling the migration from 1GbE to Multigigabit at the access and, driving the need for faster networks at the aggregation and core.Premium Core/Aggregation Switching- Network core layer can be distributed across the campus, deploying ports and switching capacity where they are needed.- The performance, scalability, and availability of a high-end enterprise-class chassis.- The deployment flexibility of fixed form factor switches40GbE and 100GbE for Maximum Performance- Up to 32x 40/100 GbE ports per switch.- Up to 8x 100 GbE stacking ports, 1.6 Tbps of stacking bandwidth per switch.- Deliver the performance and scalability required by future generations of wireless access points, IoT and LTE devices.Highly Resilient Core Switching- Redundant, hot-swappable power supplies and fans- In-Service Software Upgrades (ISSU)- Multi-Chassis Trunking (MCT) for core failover with load-balancing- Hitless stack insertion and removal Market-leading Stacking Scalability- Up to 12 switches per stack- Up to 10 km using standard optics or cables- Up to 8x 40/100GbE standard QSFP28 stacking portsAdvanced L3 Routing Delivers Design Flexibility- IPv4 and IPv6- BGP, OSPF, VRRP, PIM, PBR, VRFData Center Leaf/Spine Deployment with 25 & 100 GbE- Up to 48x 10/25GbE port per leaf switch for server connectivity- Up to 32x 40/100 GbE ports per spine switch Security and Data Privacy- MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality
| Management features | |
| Switch type: | Managed |
| Switch layer: | L2/L3 |
| Quality of Service (QoS) support: |  |
| Web-based management: | |
| ARP inspection: | |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports type: | None |
| SFP+ module slots quantity: | 48 |
| Console port: | USB |
| QSFP28 ports quantity: | 8 |
| Network | |
| Networking standards: | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support: | |
| Port mirroring: | |
| Full duplex: | |
| Flow control support: | |
| Link aggregation: | |
| Broadcast storm control: | |
| Rate limiting: | |
| Auto MDI/MDI-X: | |
| Spanning tree protocol: | |
| VLAN support: | |
| Number of VLANs: | 4096 |
| Data transmission | |
| MAC address table: | 98304 entries |
| Switching capacity: | 2560 Gbit/s |
| Forwarding rate: | 1900 Mpps |
| Jumbo frames support: | |
| Jumbo frames: | 9216 |
| Security | |
| DHCP features: | DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL): | |
| IGMP snooping: | |
| IGMP proxy: | |
| MAC address filtering: | |
| Multicast features | |
| Multicast support: | |
| Design | |
| Rack mounting: | |
| Stackable: | |
| Form factor: | 1U |
| Product colour: | Black |
| LED indicators: | |
| Number of fans: | 5 fan(s) |
| Performance | |
| Physical stacking (units): | 12 |
| Internal memory: | 4096 MB |
| Flash memory: | 32768 MB |
| Noise level: | 50.3 dB |
| Mean time between failures (MTBF): | 298215 h |
| Power | |
| Power supply included: | |
| Redundant power supply (RPS) support: | |
| Number of power supply units: | 2 |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50 - 60 Hz |
| Power consumption (typical): | 336.5 W |
| Power consumption (max): | 443.1 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): |  |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 10 - 90% |
| Operating altitude: | 0 - 3000 m |
| Non-operating altitude: | 0 - 12000 m |
| Heat dissipation: | 1149 BTU/h |
| Weight & dimensions | |
| Width: | 440 mm |
| Depth: | 444.5 mm |
| Height: | 44 mm |
