Digitus Industrial 8 Port Fast Ethernet Switch, Unmanaged
Product no.: DN-650106
Robust and durable industrial solutions with standard and DIN Rail mounting- Industrial 8-Port Fast Ethernet Switch- 8 x 10/100Base-TX Ethernet Ports- DIN rail mountableThe DIGITUS® Industrial Fast Ethernet Switch is designed for harsh environments where it is exposed to moisture, temperature fluctuations and vibration. With a temperature range of -40°C to 85°C, the Industrial Fast Ethernet Switch can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug and play system allows the Industrial Fast Ethernet Switch to be quickly integrated into the respective environment. With its Fast Ethernet connectivity, the Industrial Fast Ethernet Switch is a flexible, cost-effective solution for the industrial environment.
| Management features | |
| Switch type: | Unmanaged |
| Switch layer: | L2 |
| Ports & interfaces | |

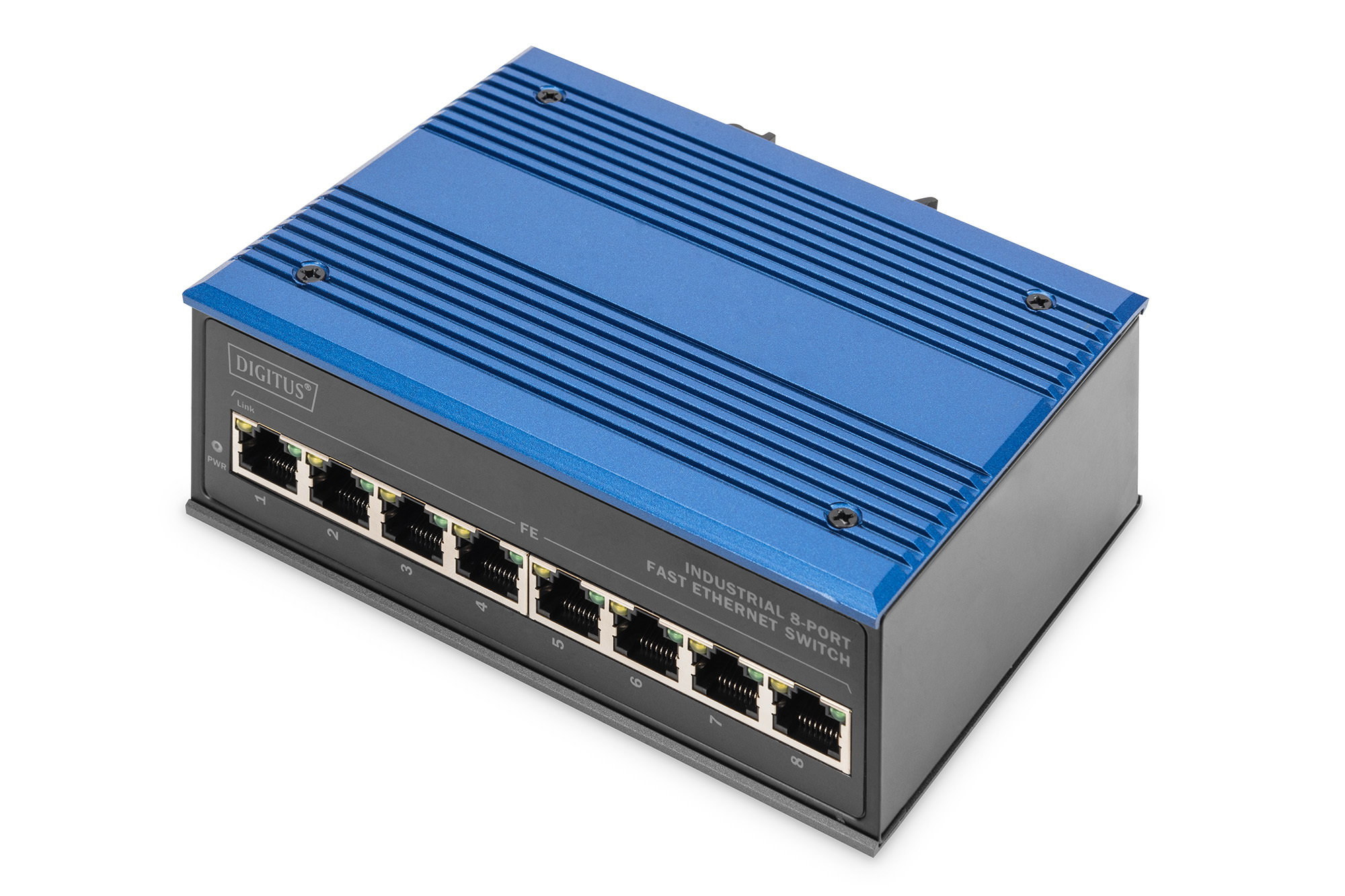

| Basic switching RJ-45 Ethernet ports quantity: | 8 |
| Basic switching RJ-45 Ethernet ports type: | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity: | 8 |
| Network | |
| Networking standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| 10G support: |  |
| Copper ethernet cabling technology: | 10BASE-T, 100BASE-TX |
| Full duplex: |  |
| Flow control support: | |
| Auto MDI/MDI-X: | |
| Ethernet LAN data rates: | 10,100 Mbit/s |
| VLAN support: | |
| Data transmission | |
| MAC address table: | 2048 entries |
| Switching capacity: | 1.6 Gbit/s |
| Store-and-forward: | |
| Design | |
| Rack mounting: | |
| Product colour: | Black, Blue |
| LED indicators: | |
| Wall mountable: | |

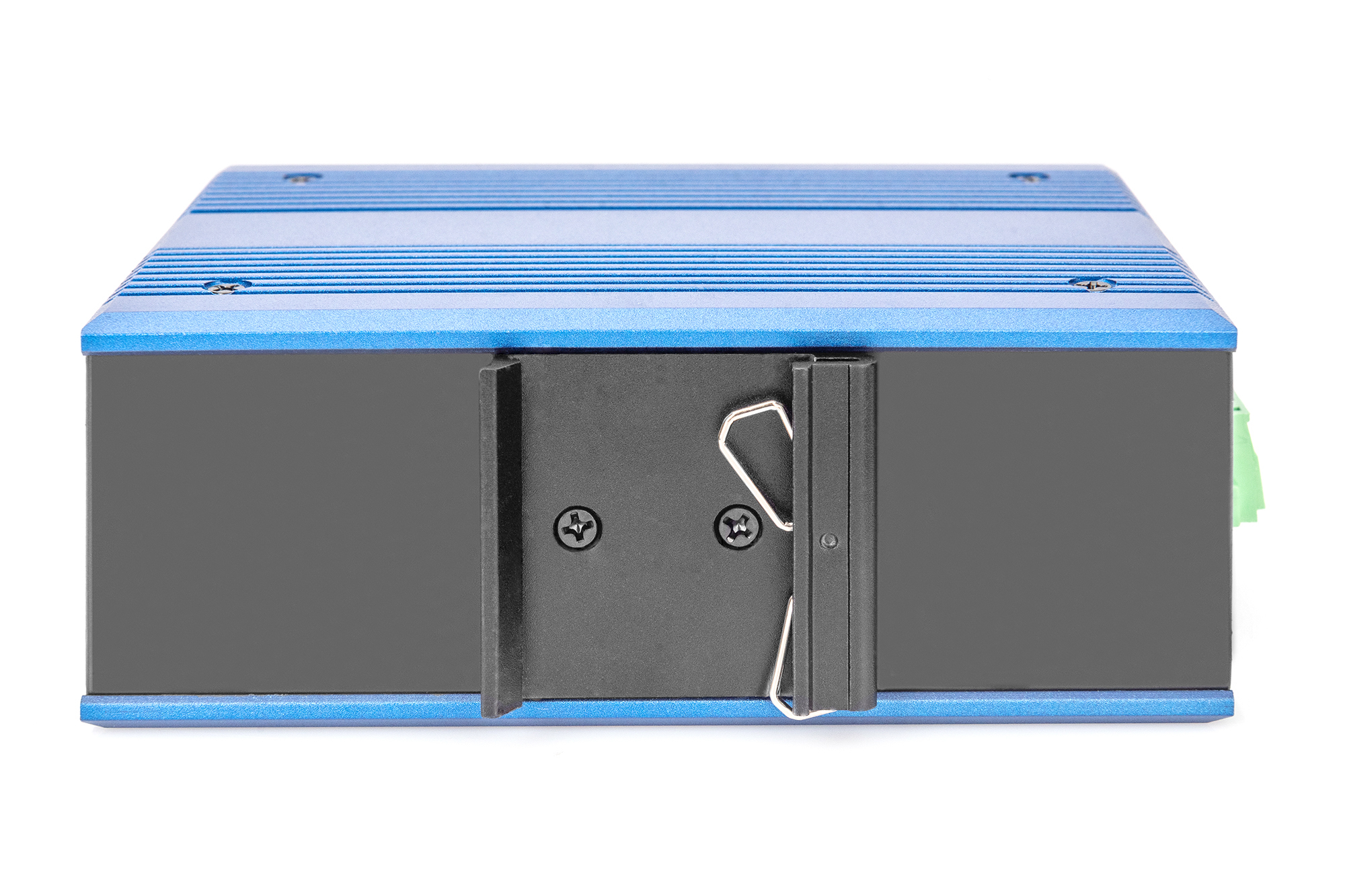

| DIN rail mounting: | |
| Vandal-proof: | |
| Suitable for outdoor use: | |
| Country of origin: | China |
| Power | |
| Redundant power supply (RPS) support: | |

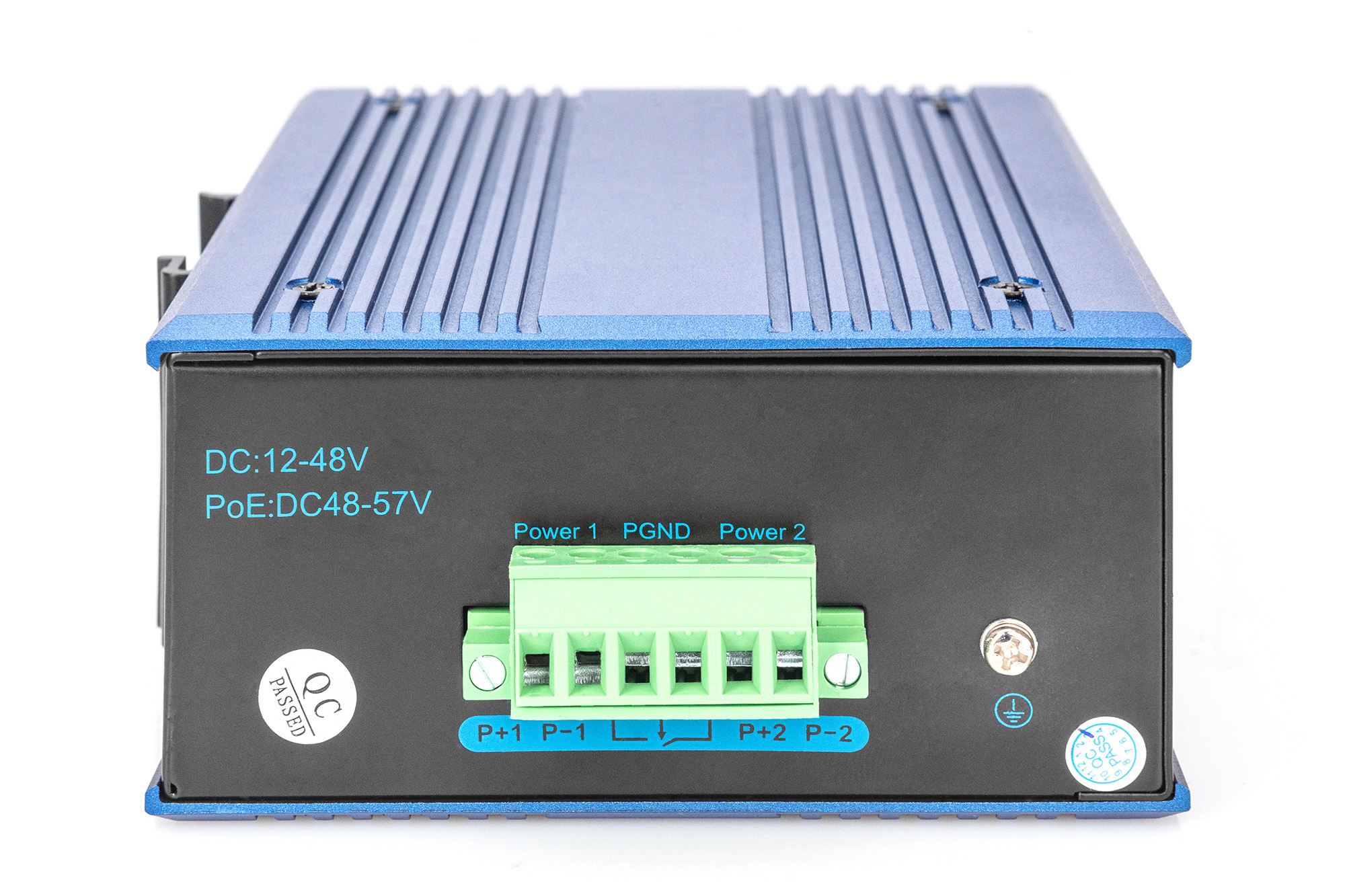

| DC input voltage: | 12 - 48 V |
| Power protection features: | Over voltage, Short circuit |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | |
| Operational conditions | |
| Operating temperature (T-T): | -40 - 85 °C |
| Weight & dimensions | |
| Width: | 143 mm |
| Depth: | 101 mm |
| Height: | 44 mm |
| Weight: | 640 g |
| Packaging data | |
| Quick start guide: | |
| Package width: | 213 mm |
| Package depth: | 154 mm |
| Package height: | 67 mm |
| Package volume: | 2197.73 cm³ |
| Package weight: | 828.571 g |
| Other features | |
| Ethernet interface type: | Fast Ethernet |
| Logistics data | |
| UK Trade Tariff code: | 85176200 |
Price:
77,99 €
19 % VAT incl. excl. Shipping costs
