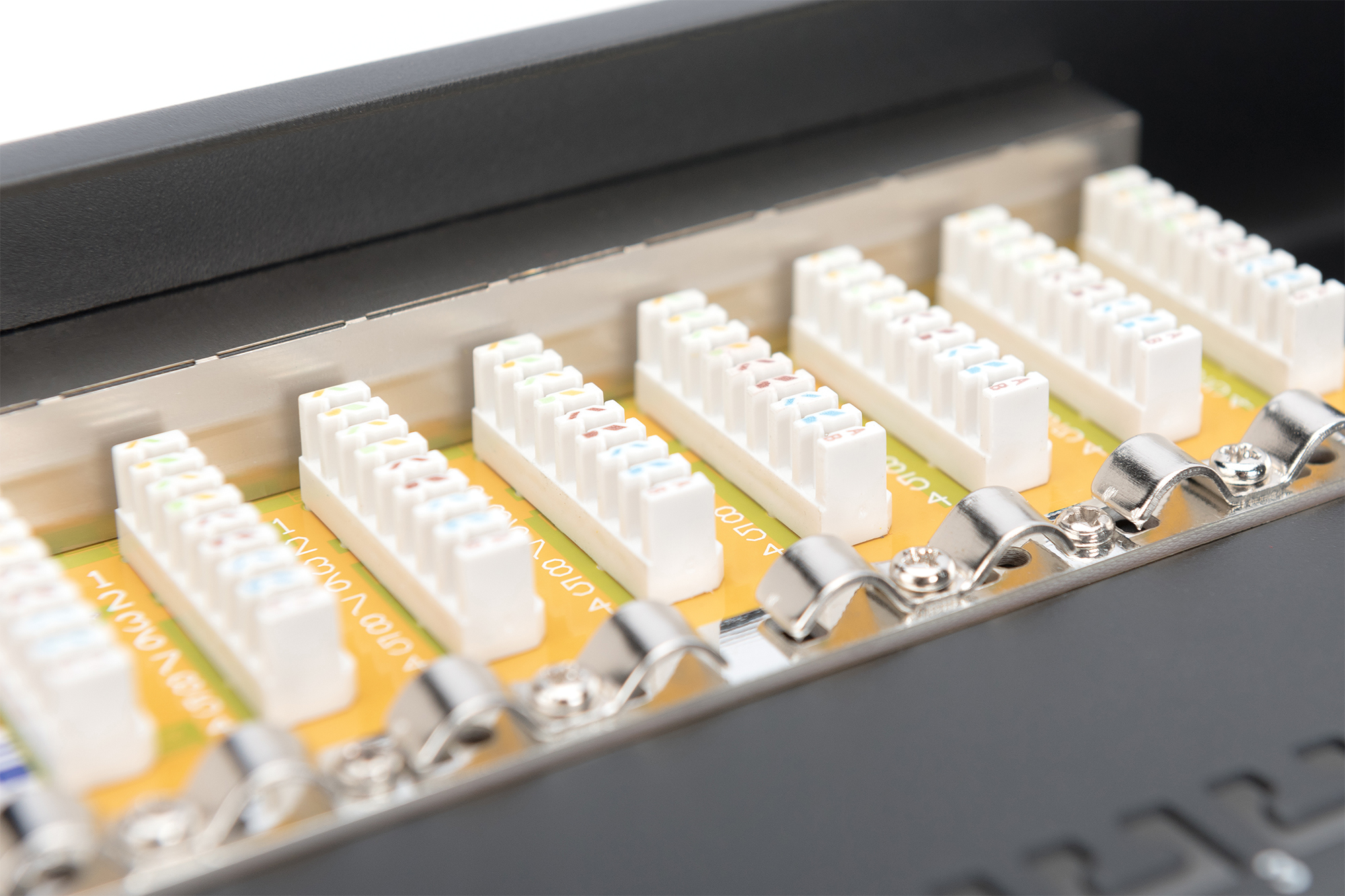

Digitus CAT 6, Class E Patch Panel
Product no.: DN-91616S-B
Future-oriented standards and high-end quality for your network.The shielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port version. It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801 and complies with the 802.3at PoE+and the 802.3af PoE standard. The housing is made of 1.5 mm galvanized cold-rolled steel and is therefore perfectly suitable for 19" rack mounting.
| Network | |
| Networking standards: | IEEE 802.3af, IEEE 802.3at |
| Ports quantity: | 16 |
| Connector(s): | RJ-45 |
| Connector contacts plating: | Gold |
| AWG wire size: | 26/22 |
| Plug/connector retention force: | 30 N |
| Design | |
| Product colour: | Black |
| Material: | Galvanized steel |
| Mounting: | Rack mounting |
| Rack capacity: | 1U |
| Operational conditions | |
| Operating temperature (T-T): | -20 - 70 °C |
| Packaging data | |
| Package width: | 500 mm |
| Package depth: | 135 mm |
| Package weight: | 1.06 kg |
| Package volume: | 4050 cm³ |
| Logistics data | |
| Country of origin: | China |
| Harmonized System (HS) code: | 85371098 |
| UK Trade Tariff code: | 85369010 |
Price:
75,99 €
19 % VAT incl. excl. Shipping costs
