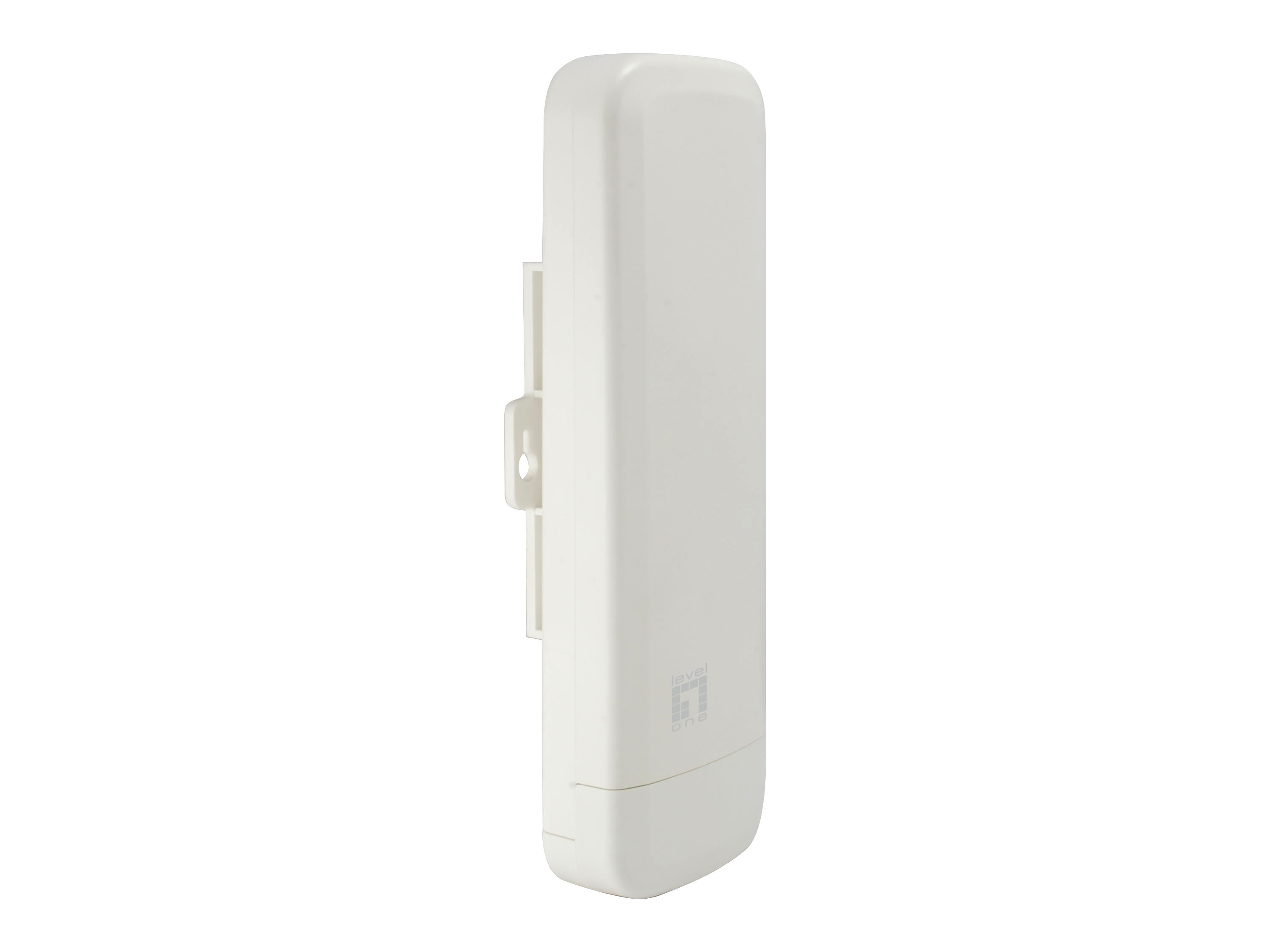

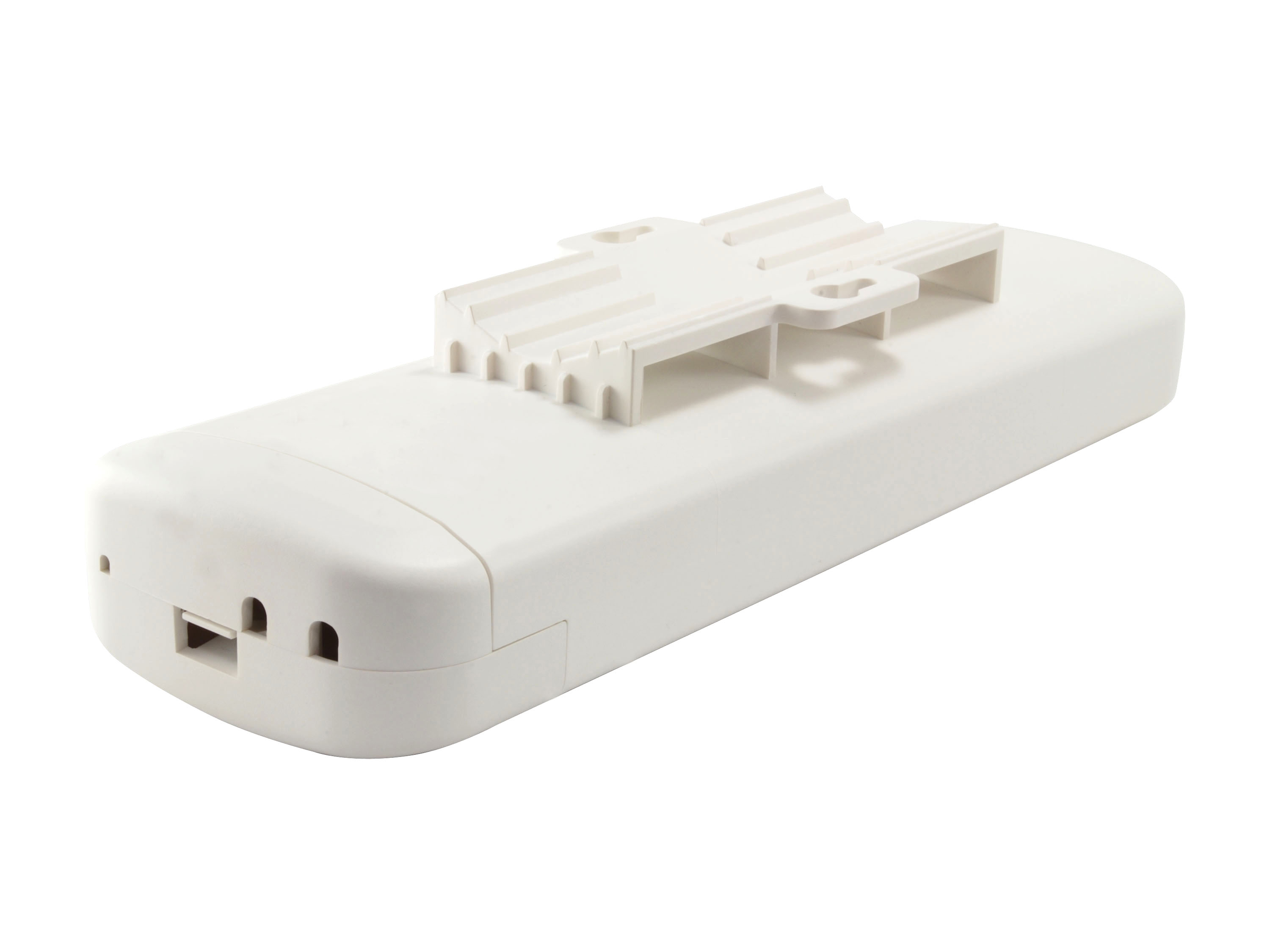

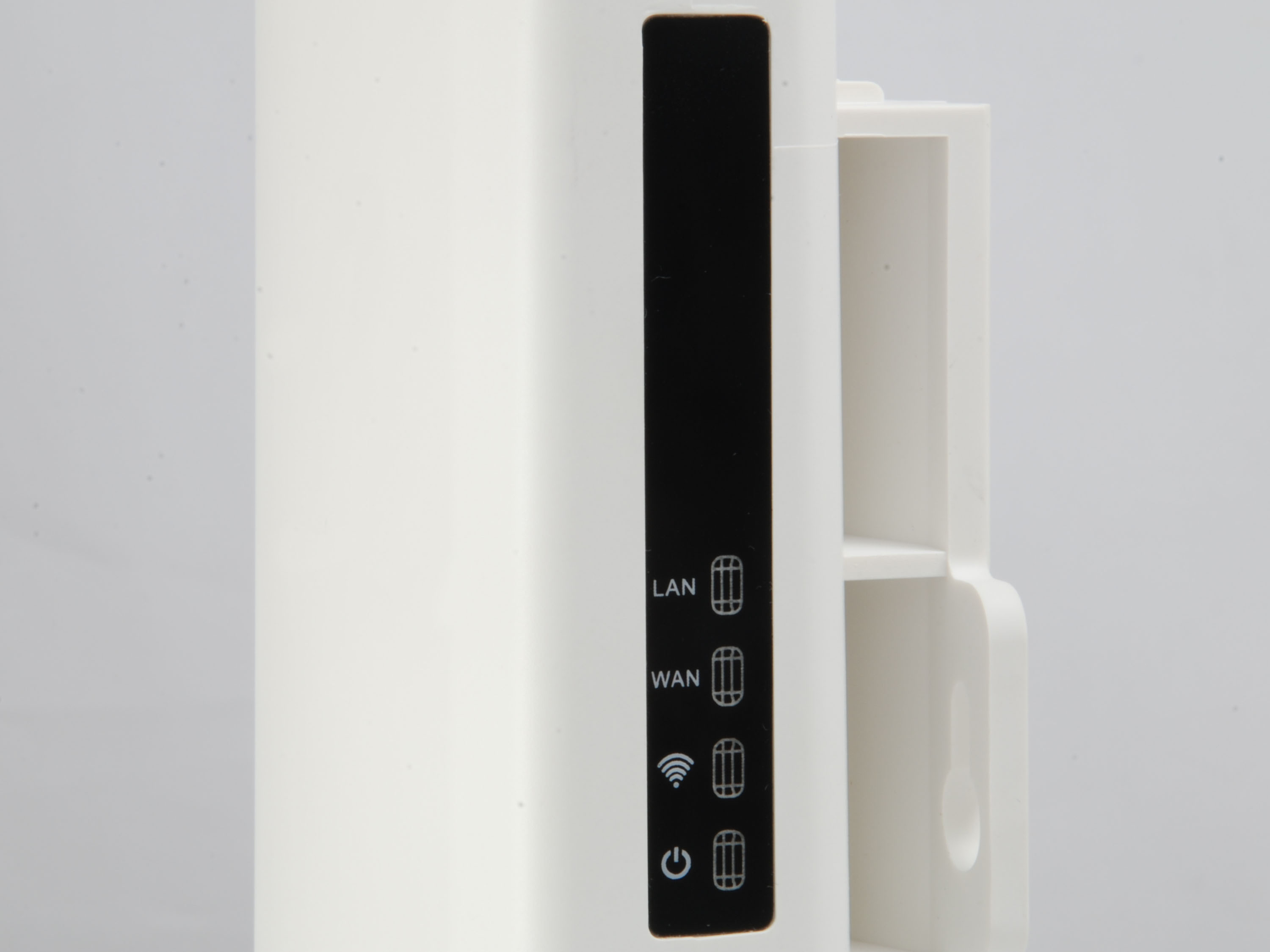

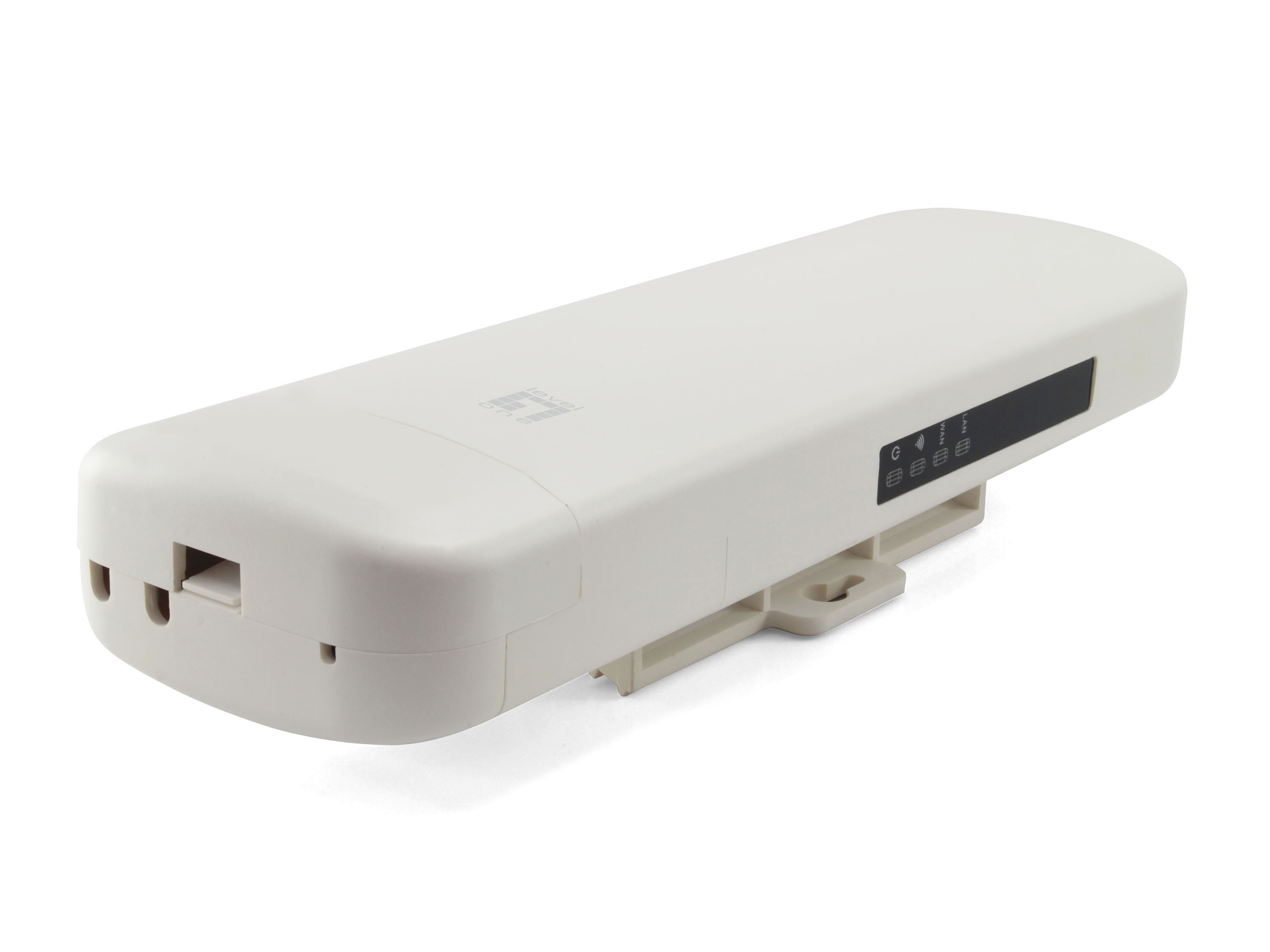

LevelOne N300 Outdoor PoE Wireless Access Point, Controller Managed
Product no.: WAB-6010
The LevelOne WAB-6010 is a managed, outdoor single-band 802.11n wireless access point, capable of 300 Mbps wireless internet speeds. The device runs on 2.4 GHz frequency, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-6010 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
| Features | |
| 2.4 GHz: |  |
| 5 GHz: |  |
| Maximum data transfer rate: | 100 Mbit/s |
| Wi-Fi data rate (max): | 300 Mbit/s |
| Ethernet LAN data rates: | 10,100 Mbit/s |
| Frequency band: | 2.4 - 2.4835 GHz |
| Networking standards: | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| Number of users: | 64 user(s) |
| Channels quantity: | 13 channels |
| Modulation: | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, QPSK |
| Wi-Fi Multimedia (WMM)/(WME): | |
| Operating modes: | Access Point (AP),Gateway,Repeater,WISP |
| Quality of Service (QoS) support: | |
| Security | |
| Security algorithms: | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Service Set Identifier (SSID) features: | SSID broadcast on/off |
| Number of SSID supported: | 4 |
| Management features | |
| Web-based management: | |
| Firmware upgradeable: | |
| Ports & interfaces | |

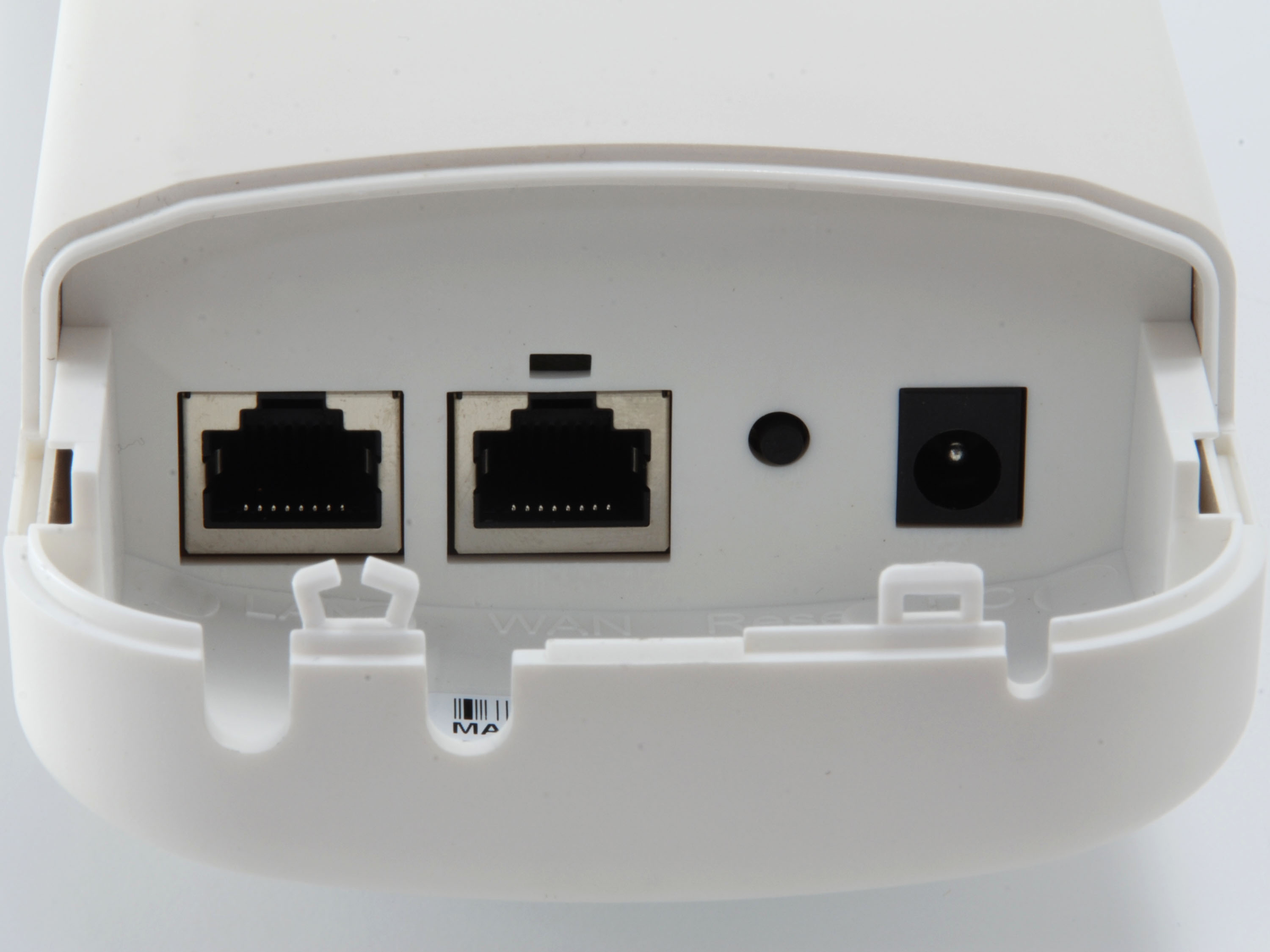

| Ethernet LAN (RJ-45) ports: | 1 |
| WAN connection: | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE): | |
| AC input voltage: | 12 V |
| Input current: | 1 A |
| Design | |

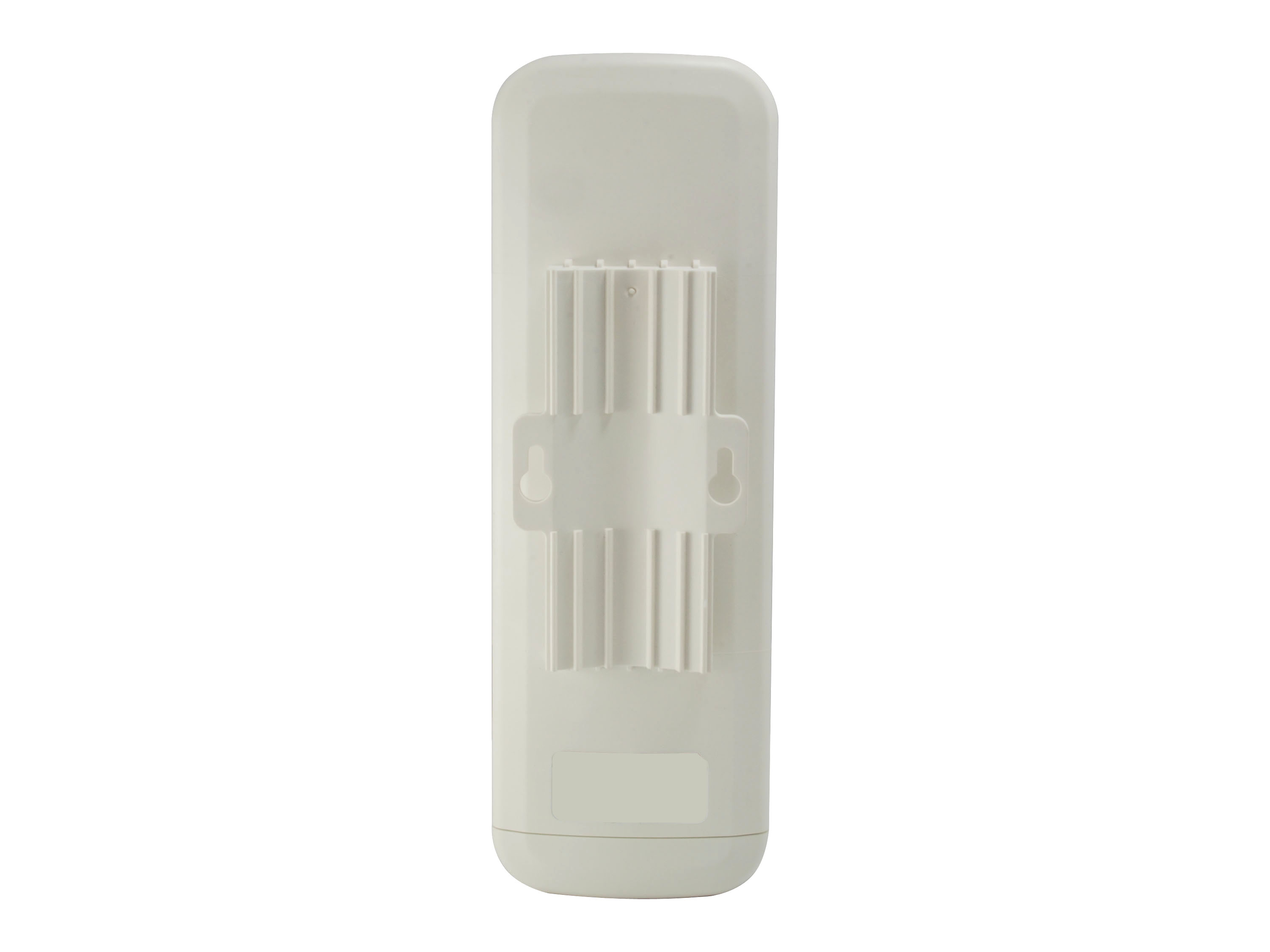

| Placement: | Pole |
| Product colour: | White |
| International Protection (IP) code: | IP65 |
| Reset button: | |
| Country of origin: | China |
| Certification: | CE |
| Internal: | |
| Antenna | |
| Antennas quantity: | 2 |
| Antenna gain level (max): | 5 dBi |
| Weight & dimensions | |
| Width: | 87 mm |
| Depth: | 257 mm |
| Height: | 38 mm |
| Weight: | 400 g |
| Packaging data | |
| CD manual: | |
| CD quick installation guide: | |
| Package width: | 106 mm |
| Package depth: | 332 mm |
| Package height: | 95 mm |
| Package weight: | 700 g |
| Package type: | Box |
| Packaging content | |
| Cables included: | LAN (RJ-45) |
| Mounting kit: | |
| Operational conditions | |
| Operating relative humidity (H-H): | 10 - 90% |
| Operating temperature (T-T): | -40 - 55 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 5 - 90% |
| Logistics data | |
| Harmonized System (HS) code: | 85176990 |
| Master (outer) case width: | 350 mm |
| Master (outer) case length: | 495 mm |
| Master (outer) case height: | 452 mm |
| Master (outer) case gross weight: | 2.1 kg |
| Products per master (outer) case: | 20 pc(s) |
