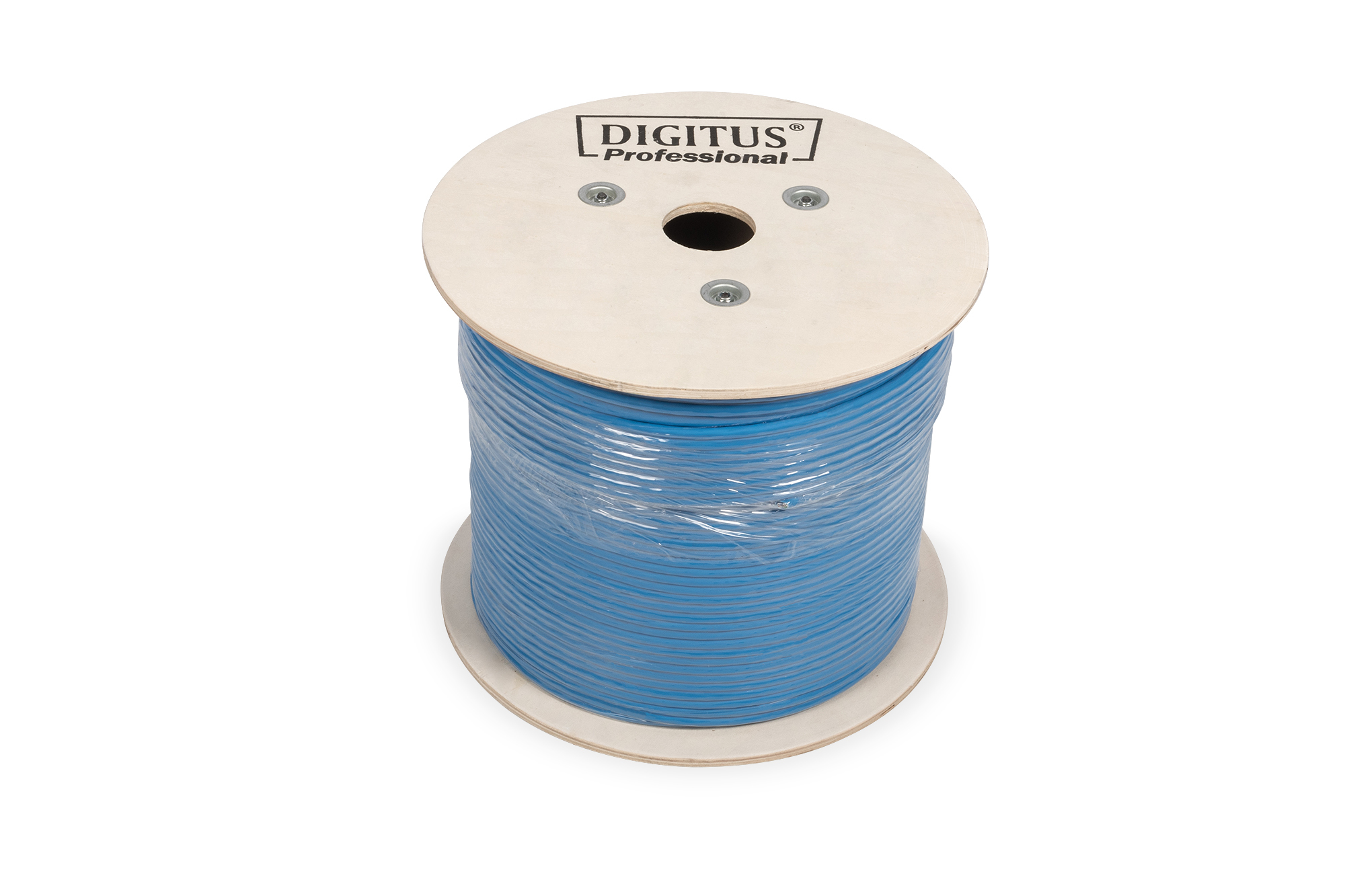

Digitus Cat.6A U/FTP installation cable, 500 m, simplex, Eca
Product no.: DK-1623-A-VH-5

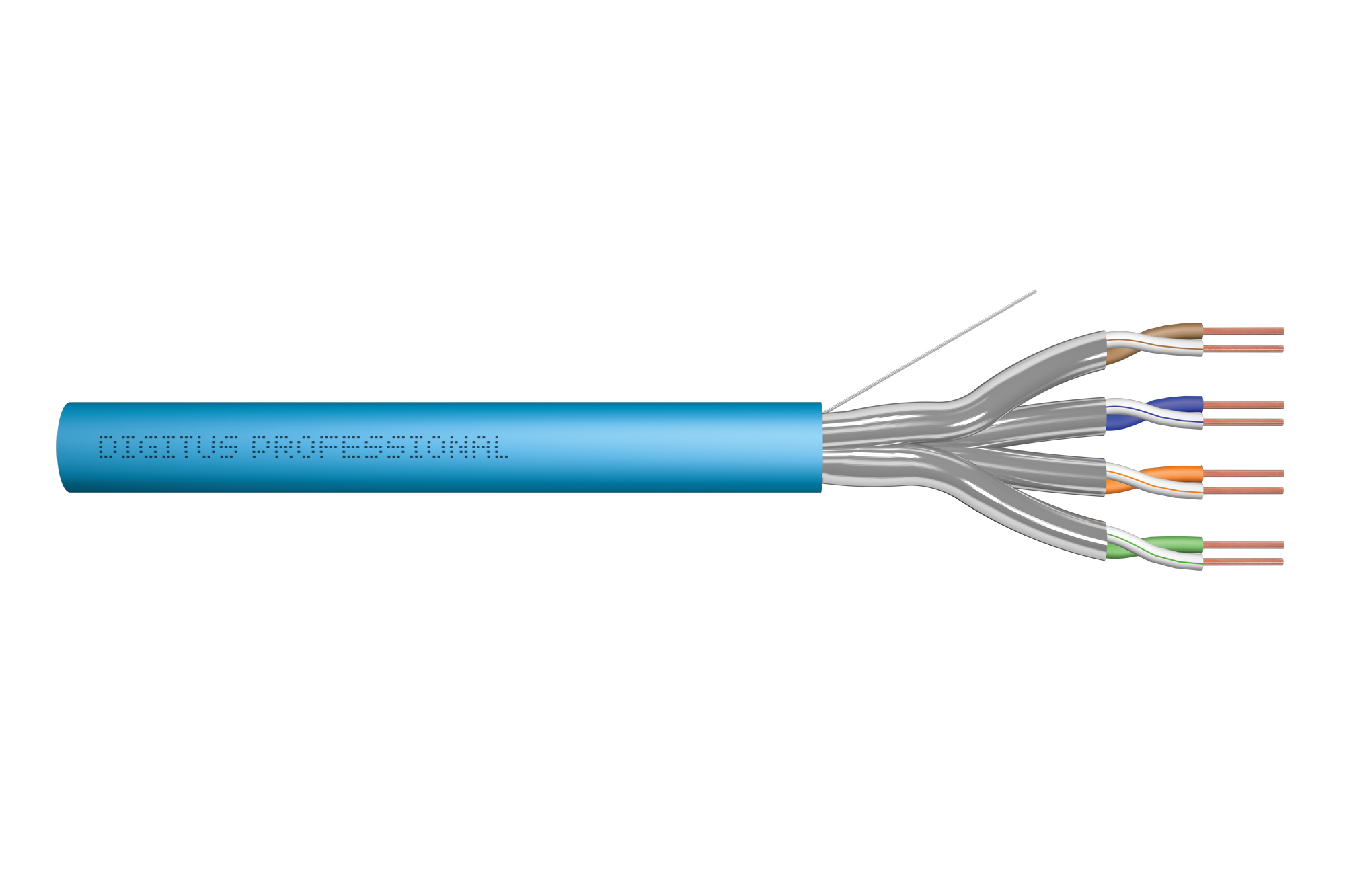

Future-oriented standards and high-end quality for your network.- 10GBit Ethernet- 500 MHz transmission frequency- PoE Power over Ethernet support- CPR class EcaThe Digitus® Cat.6A U/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-1, FRNC-B, LSZH-1 and CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-10-1.
| Features | |
| Cable length: | 500 m |
| Cable standard: | Cat6a |
| Cable shielding: | U/FTP (STP) |
| Product colour: | Blue |
| Jacket material: | Low smoke zero halogen (LSZH) |
| Conductor type: | Solid |
| AWG wire size: | 23/1 |
| Frequency: | 500 MHz |
| Certification: | CPR class Eca |
| Country of origin: | China |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 300 mm |
| Package depth: | 400 mm |
| Package weight: | 28 kg |
| Package volume: | 36000 cm³ |
| Logistics data | |
| Harmonized System (HS) code: | 84733080 |
| UK Trade Tariff code: | 85444920 |
Price:
339,00 €
19 % VAT incl. excl. Shipping costs
