ATEN CE775 AV extender AV transmitter & receiver Black
Product no.: CE775

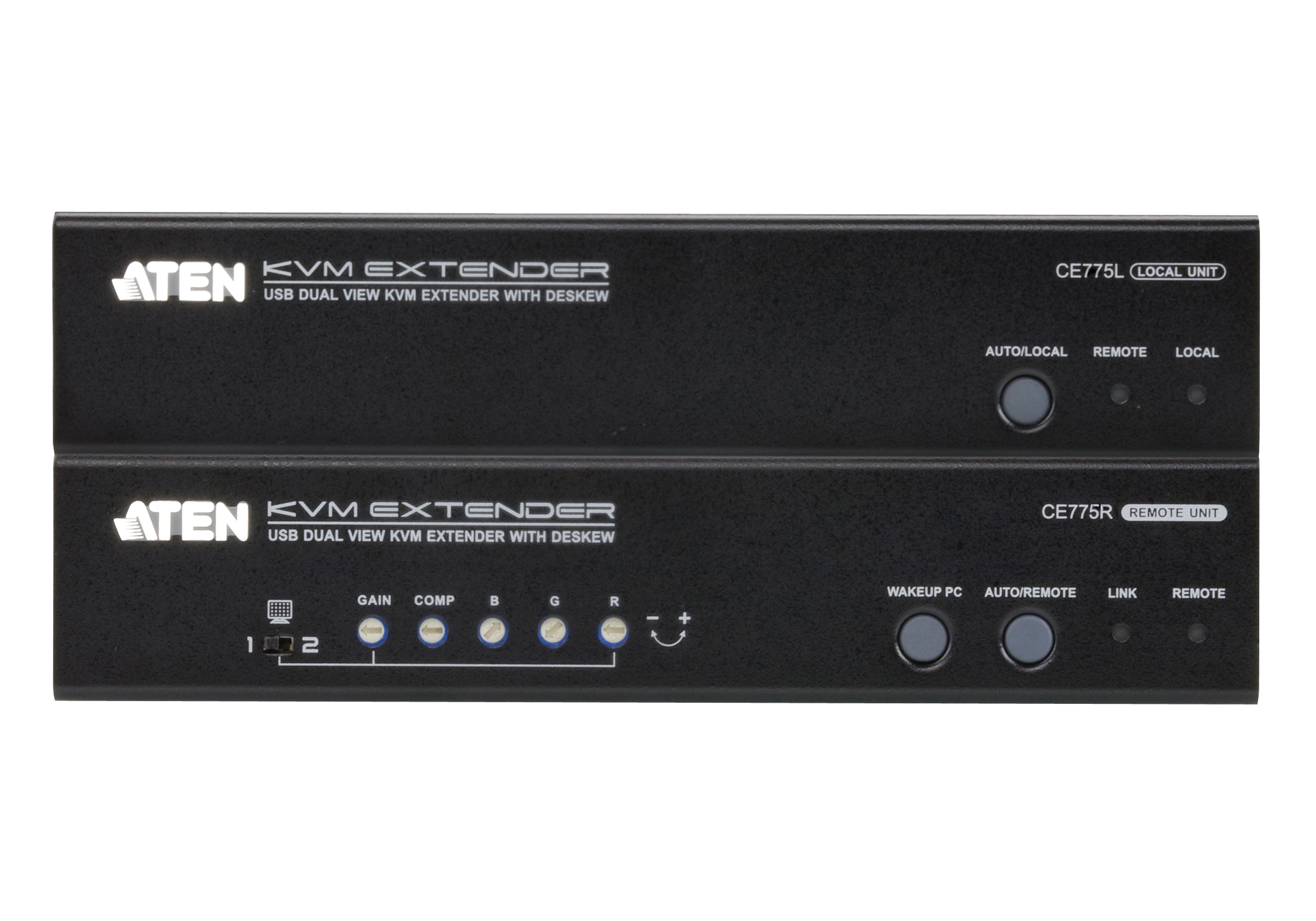

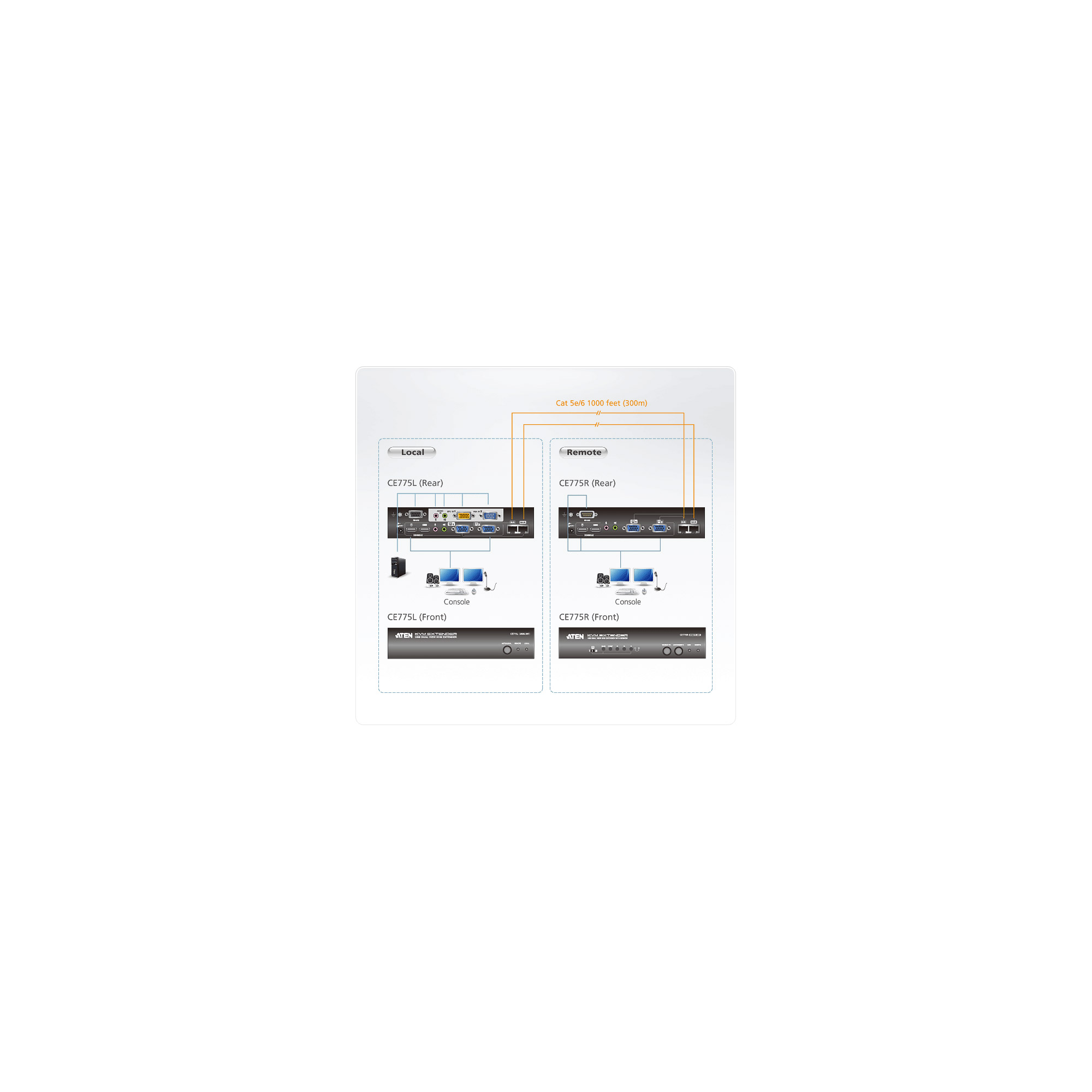

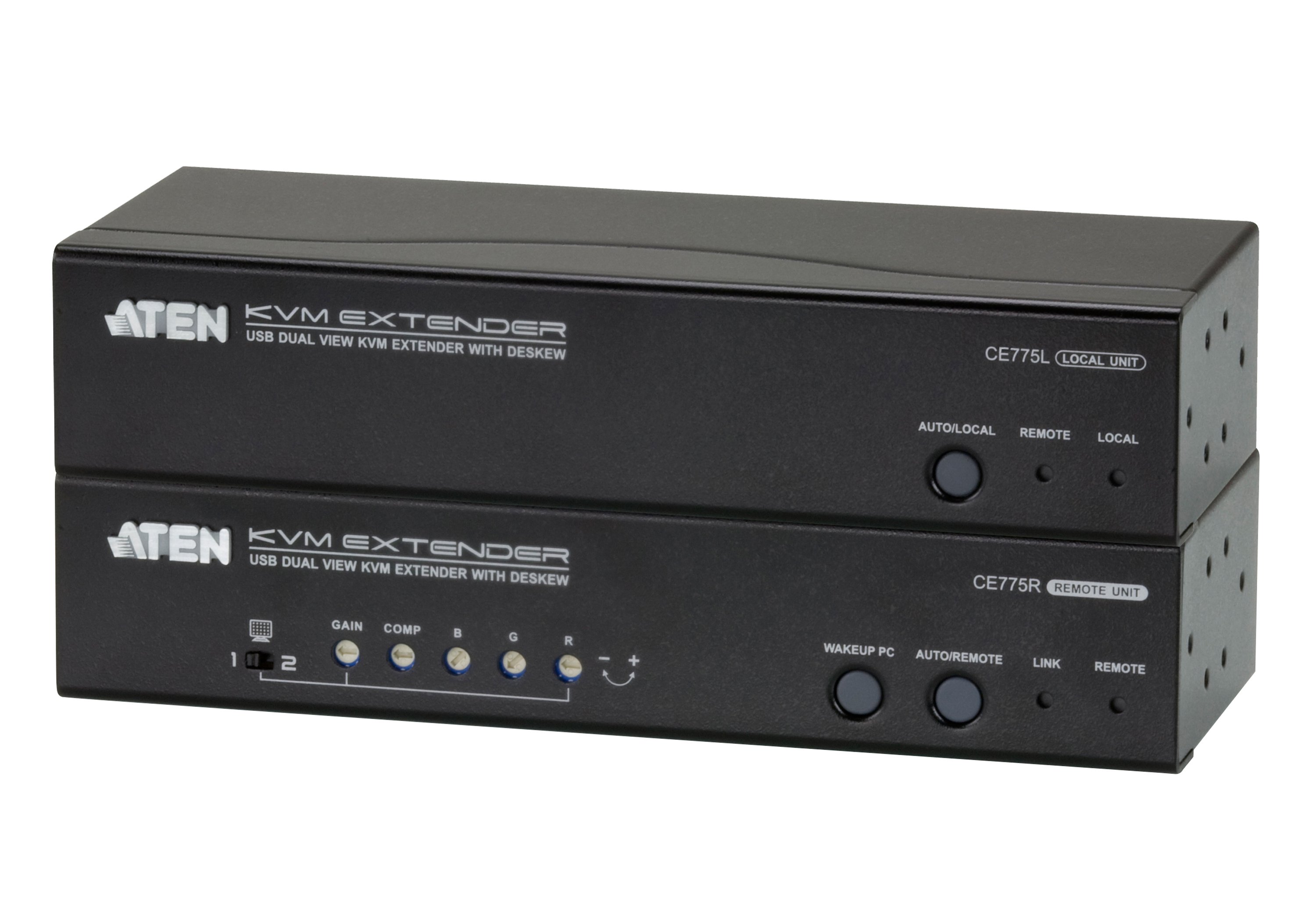

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays, allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232, no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console, effi cient and flexible.Use the improved built-in front panel tuners to easily adjust the picture quality. In addition, you can automatically synchronize the time delay of RGB signals in order to compensate for distance, easy and fast than ever.
| Features | |
| Type: | AV transmitter & receiver |
| Maximum resolution: | 1920 x 1200 pixels |
| Cable types supported: | Cat5e |
| Maximum transfer distance: | 300 m |
| Audio system: | Multichannel |
| LED indicators: |  |
| Product colour: | Black |

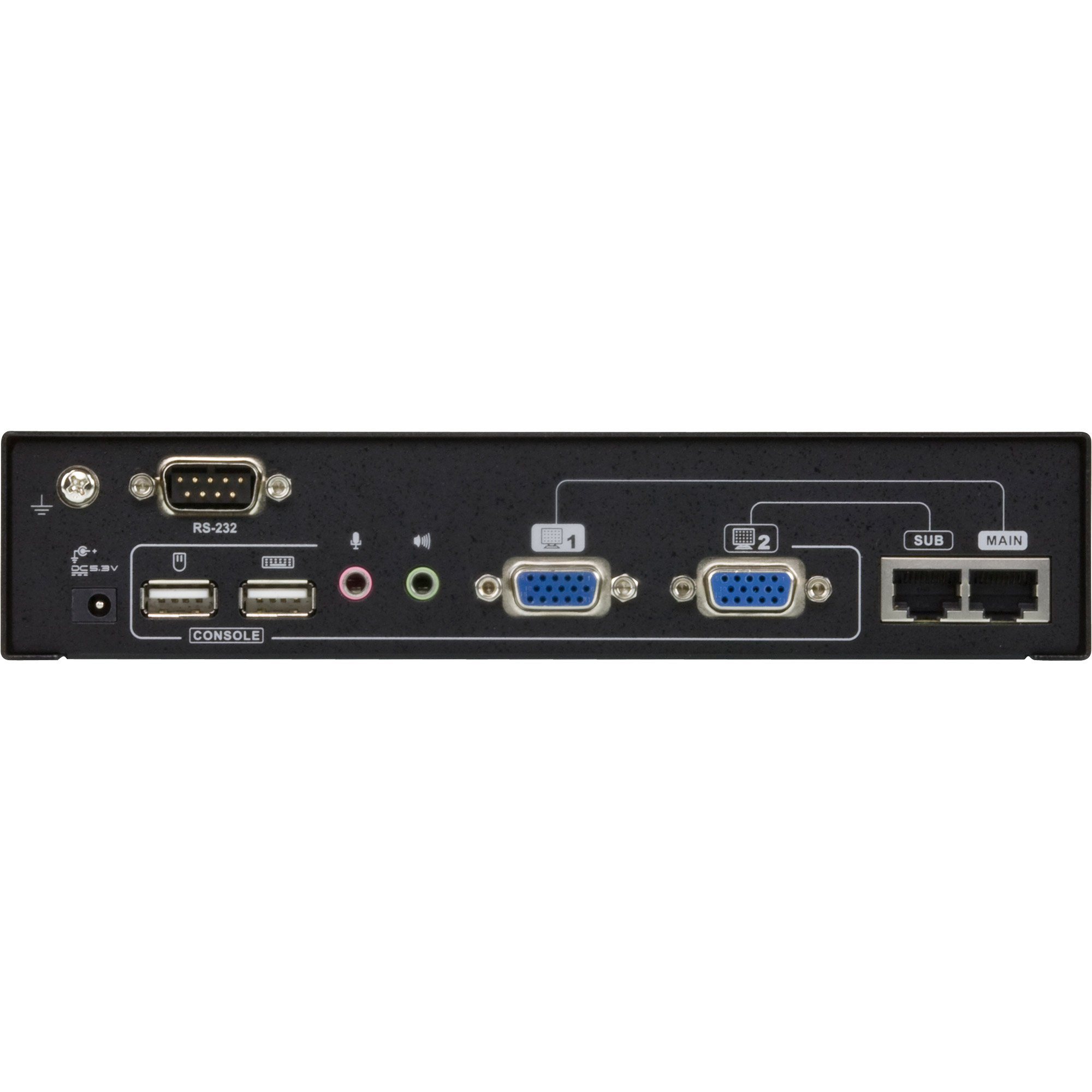

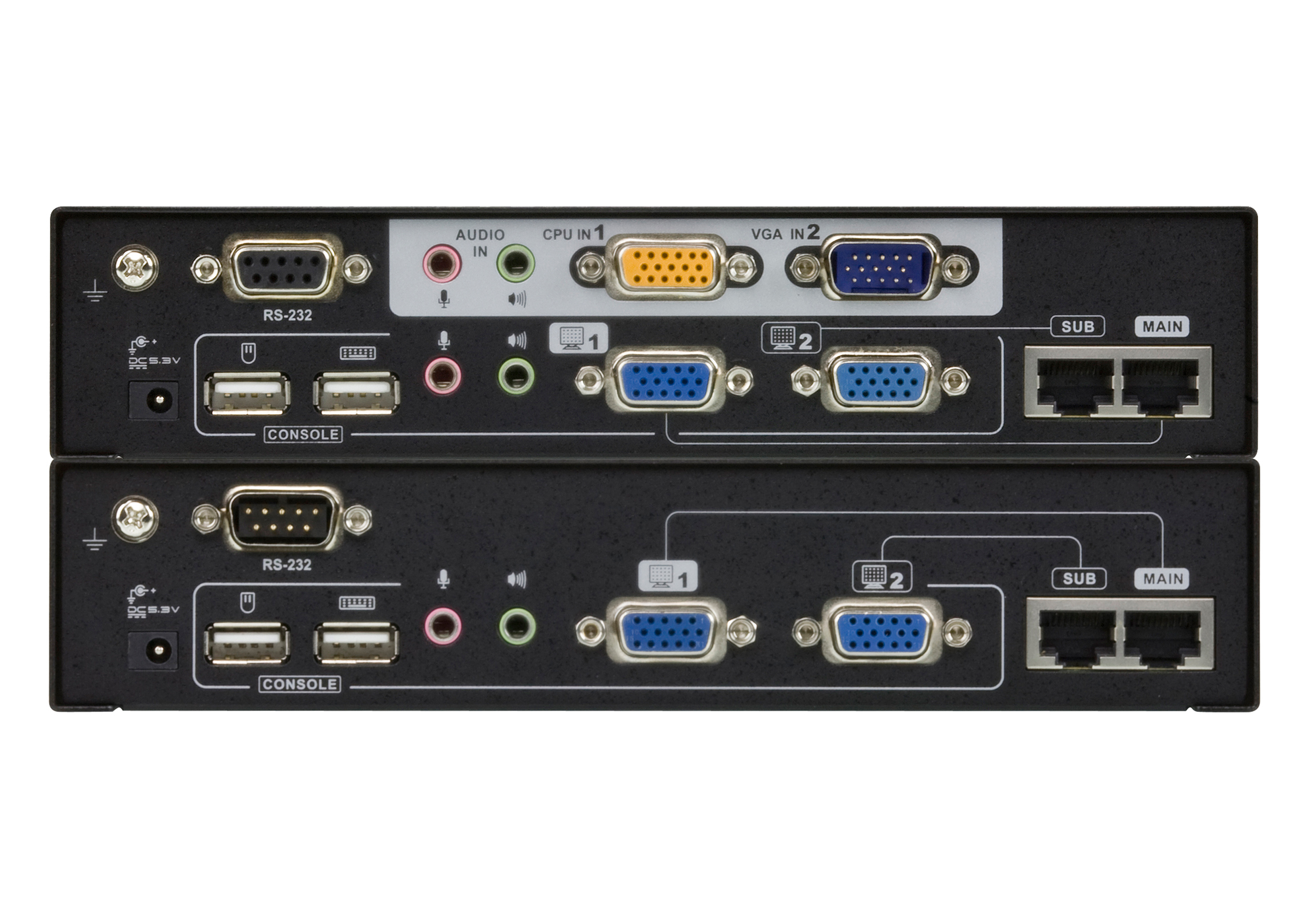

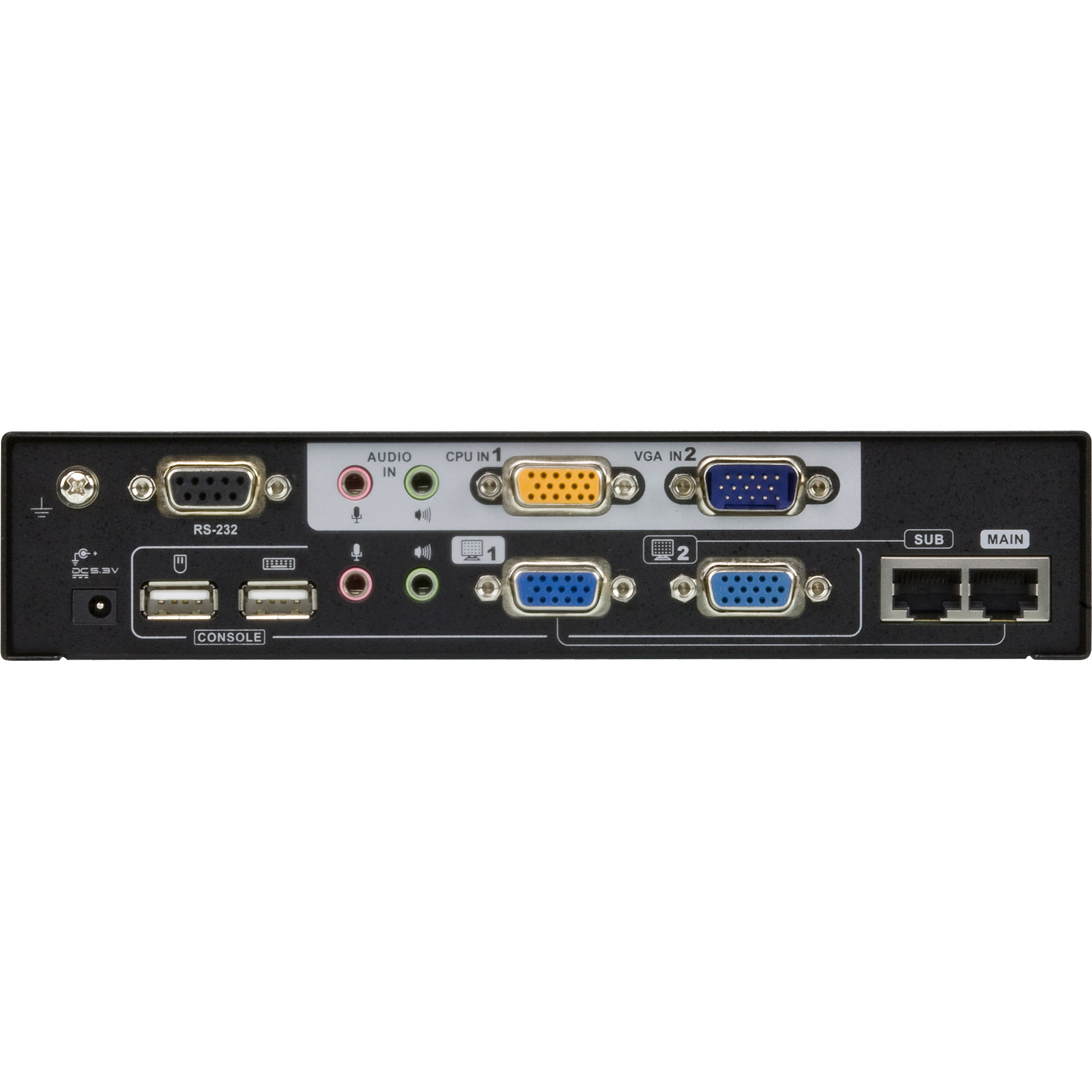

| Ports & interfaces | |
| RJ-45 input ports: | 2 |
| RJ-45 output ports: | 2 |
| VGA (D-Sub) input ports: | 4 |
| Audio input: | 3.5mm |
| Audio output: | 3.5mm |
| DC-in jack: | |
| Power | |
| Operating voltage: | 5.3 V |
| External power adapter: | |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 0 - 80% |
| Weight & dimensions | |
| Dimensions (WxDxH): | 75.8 x 200 x 42 mm |
| Weight: | 690 g |
| Technical details | |
| Connector type: | USB, SPHD-17, RS-232 |
Price:
730,07 €
20 % VAT incl. excl. Shipping costs
